OPEN SLOT WIRING DUCT
OPEN SLOT WIRING DUCT
●Material: UL94V-0 flame rated, UL approved PVC.
●Color: Grey.
●PVC service temperature: 85℃
●UL Test up to 50℃
●Double Score lines:The restricted slot, sidewall design is scored at the base of each finger and the base of duct. It is easy for the user to break finger from the base to enlarge bundle of wire.
●Pinch Points:To separate the wires from top and bottom to avoid the wires tangled.
●Narrow and Larger Fingers:Both are available to supply the installer for different application.
●Outward sidewall design:Provide the resistance to prevent the cover/lid slipping off.
※The standard wiring duct can be available for non-slip cover, suitable for vertical installations. The item number please specify for example,
Item no. ：MPD-2550SQ ⇒ MPQ-2550SQ
Item no. ：PD-2550SQ ⇒ PQ-2550SQ
Item no. ：MID-2530SQ ⇒ MIQ-2530SQ
Item no. ：HID-2560SQ ⇒ HIQ-2560SQ
Non-slip cover for the size less than 20mm width or bigger than 125mm is available upon request.


MPD SLOT：8mm
Part No.Size
WxH		Wires to be ContainedLength
 MPD-2550SQ25x 5020~25 pcs2M
 MPD-2575SQ25x 7560~75 pcs
 MPD-5050SQ50x 5080~90 pcs
 MPD-5075SQ50x 75180~200 pcs
 MPD-7575SQ75x 75200~250 pcs
 MPD-100100SQ100x 100300~400 pcs


PD SLOT：5mm
Part No.Size
WxH		Wires to be ContainedLength
 PD-2550SQ25x 5020~25 pcs2M
 PD-2575SQ25x 7560~75 pcs
 PD-5050SQ50x 5080~90 pcs
 PD-5075SQ50x 75180~200 pcs
 PD-7575SQ75x 75200~250 pcs
 PD-100100SQ100x 100300~400 pcs


MID SLOT：8mm
Part No.Size
WxH		Wires to be ContainedLength
 MID-2530SQ25x 3015~25 pcs2M
 MID-2540SQ25x 4020~25 pcs

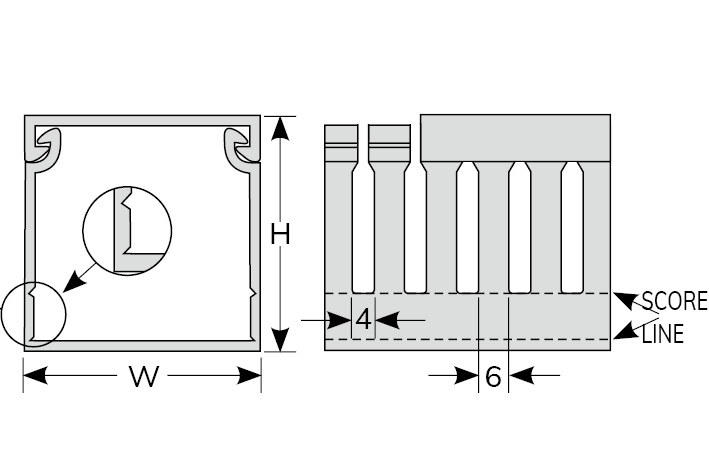

HIQ SLOT：4mm
Part No.Size
WxH		Wires to be ContainedLength
 HID-2560SQ25x 6040~45 pcs2M
 HID-2580SQ25x 8060~75 pcs
 HID-4080SQ40x 80120~135 pcs
 HID-6080SQ60x 80180~210 pcs
