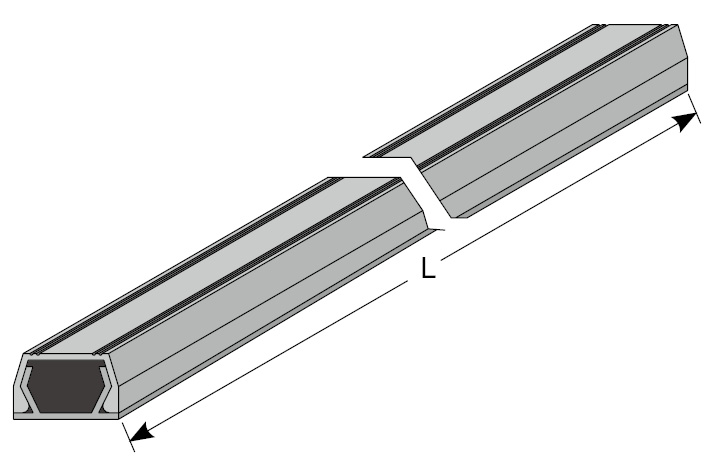

TELEPHONE WIRING DUCT (SELF-ADHESIVE)

● Material: UL94V-0 flame rated, UL approved PVC. ● Color: Grey. (Milk, White, Brown available on request) ● PVC service temperature: 85℃ ● With adhesive tape. Cloth adhesive and foam adhesive are available. ● Length: 1M (2M available upon request)

Part No.	Color	W1	W2	H1	Length
JD-1	Grey	10.4	8.6	8.0	1M
JD-1BN	Brown
JD-1MW	Milk
JD-1WE	White
JD-2	Grey	14.5	11.5	8.0
JD-2BN	Brown
JD-2MW	Milk
JD-2WE	White
JD-3	Grey	18.8	16.4	10.8
JD-3BN	Brown
JD-3MW	Milk
JD-3WE	White
JD-4	Grey	23.5	19.5	12.2
JD-4BN	Brown
JD-4MW	Milk
JD-4WE	White

■ The above color cards are for reference only.
