WIRING DUCT

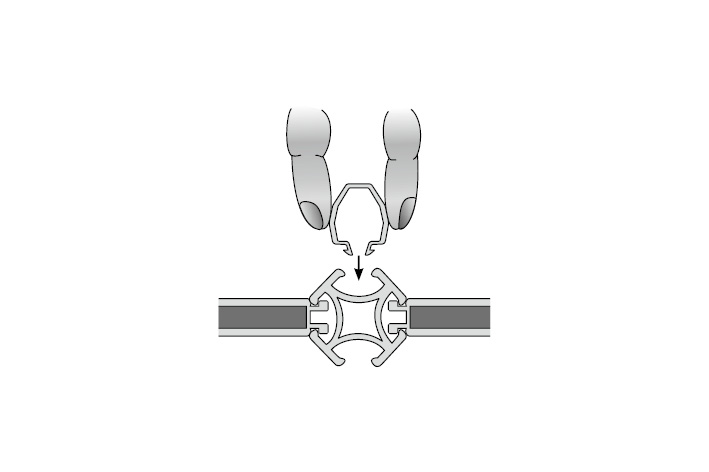

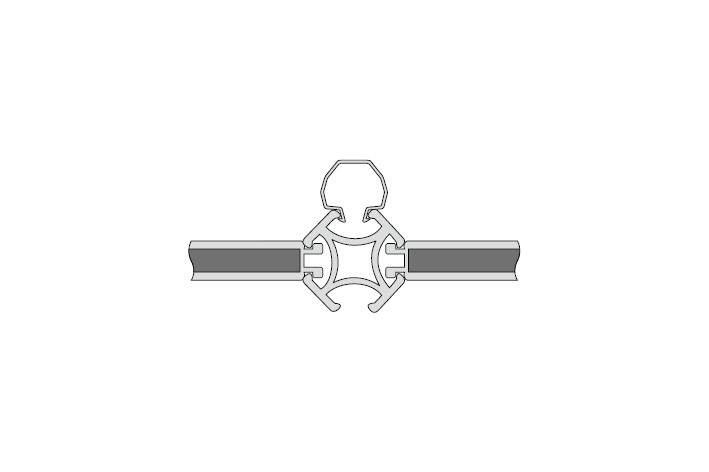

● Material: UL94V-0 flame rated, UL approved PVC. ● Color : Grey ● PVC service temperature: 85℃ ● Snap the design lock into the stand aluminum frame. ● For containing wire inside professionally.

Part No.	W	W1	H	H1	Length
	mm	mm	mm	mm
EX-1	20.4	10.9	28.2	21.6	2M
EX-2	14.4	5.0	16.6	9.5
