ROUND TYPE WIRING DUCT WITH ALUMINUM COVER

● Material: UL94V-0 flame rated, UL approved PVC with Aluminum alloy cover. ● PVC service temperature: 85℃ ● Construct: Set of cover and base, self-adhesive tape backed on base for easy installation. ● Function: Suitable for telecommunication, networking, security system, computer system, monitor and other wiring application. ● Feature: 1. High-impact aluminum cover to protect network communication from disconnection due to strong collision. 2. Firm round cover design suitable for floor wiring application to facilitate trolley pass and avoid trips. 3. Special streak design cover to avoid slip. Shining cover facilitate for decoration and suitable for department store, supermarket, shopping mall, station, hotel, hospital, office and any other public area.

with adhesive tape

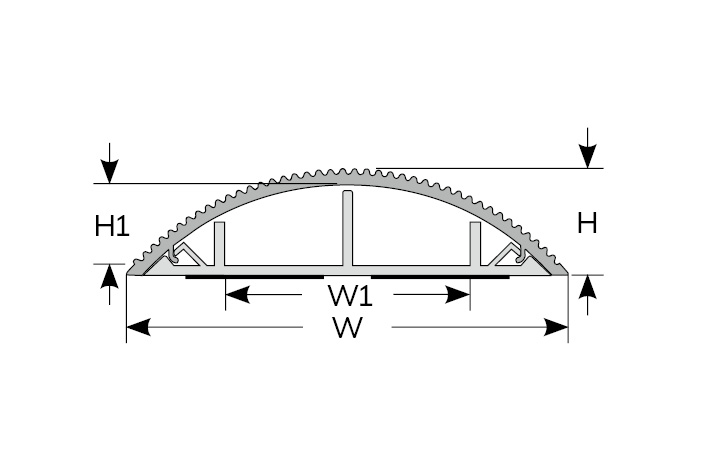

Part No.	W	W1	H	H1	Length
	mm	mm	mm	mm
ARD-50	51.0	19.5	12.6	9.8	1M

with adhesive tape
Part No.	W	W1	H	H1	Length
	mm	mm	mm	mm
ARD-70	68.6	37.0	17.5	14.5	1M
ARD-120	117.0	68.0	23.4	19.3

with adhesive tape
Part No.	W	W1	H	H1	Length
	mm	mm	mm	mm
ARD-90	88.0	45.0	17.7	14.5	1M
