● Material: The wiring duct base is rigid PVC, and the two sides are flexible PVC. ● Hard base extruded PVC supplied with double sided adhesive base. ● Split insert design of duct body (soft) for easy insertion and removal of wire application. ● Suitable for wire dia. under 10mm.

With Adhesive Tape

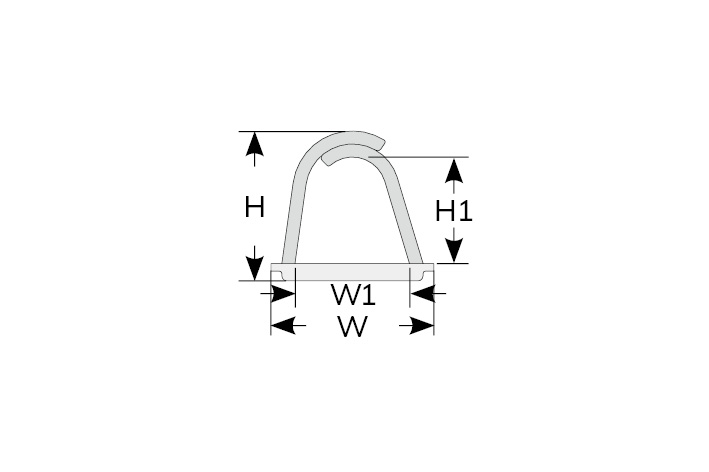

Part No.	Color	W	W1	H	H1	Length
		mm	mm	mm	mm
RSD-8WE	White	12.0	8.0	10.8	7.0	1M
RSD-10BN	Brown	15.0	10.5	13.8	9.8

■ The above color cards are for reference only.
