LOCKING CIRCUIT BOARD SUPPORT

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Feature: Easy to install / unload by hand, without tool. Pre-drill a hole on P.C board and chassis before usage. Double locking design ensure that once install cannot be removed easily.

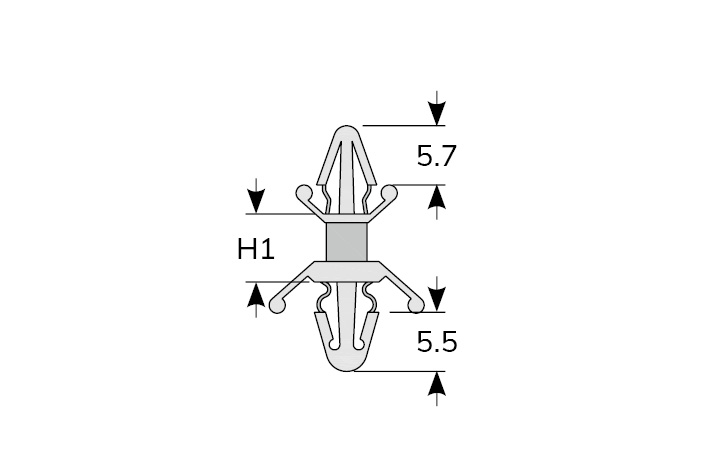

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
CS-0406S	6.4(1/4")	4.0	2.3	4.8	2.0	100 pcs / Bag
CS-0610	9.3(3/8")	4.0	1.8	4.8	2.5
CS-0813	12.7(1/2")	4.0	1.8	4.8	2.5
CS-1016	15.9(5/8")	4.0	1.8	4.8	2.5
CS-1219	19.1(3/4")	4.0	1.8	4.8	2.5
CS-1422	22.2(7/8")	4.0	1.8	4.8	2.5
CS-1625	25.4(1")	4.0	1.8	4.8	2.5
CS-1828	28.5(1 1/8")	4.0	1.8	4.8	2.5
CS-2236	35.0(1 3/8")	4.0	1.8	4.8	2.5
CS-2236L	35.0(1 3/8")	4.8	1.8	4.8	2.5

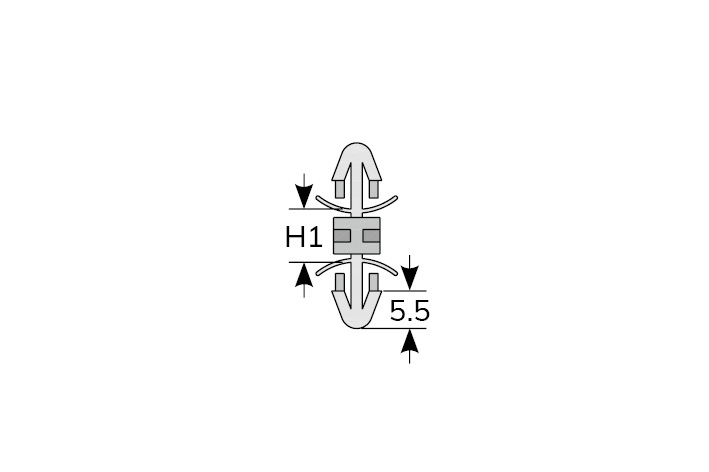

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
CS-0305	4.8(3/16")	4.0	1.8	4.8	2.5	100 pcs / Bag
CS-0406	6.4(1/4")	4.0	1.8	4.8	2.5

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
CS-0305S	4.8(3/16")	3.0	2.0	3.0	2.0	100 pcs / Bag
