MINIATURE SUPPORT POST

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Pre-drill a hole on P.C. board and chassis before usage. Easy to install / unload by hand, without tool. ● For application where space is limited and extra height is prohibited.

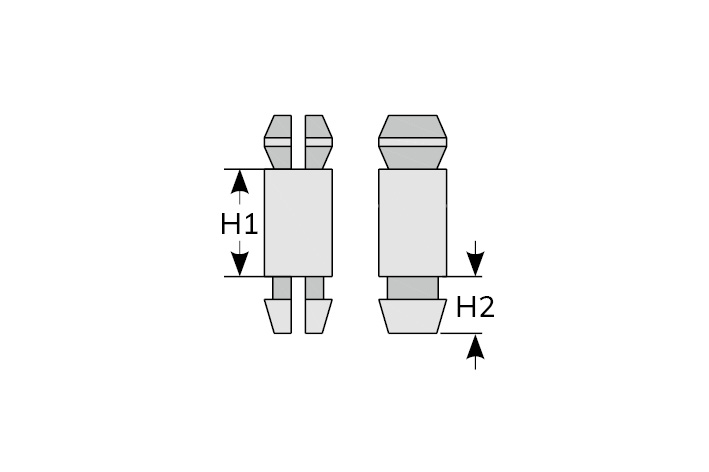

Part No.	H1	H2	P.C.B		Chassis		Packing
			Hole	Thickness	Hole	Thickness
			M1	T1	M2	T2
SP-3	3.2	3.8	4.0	1.6	4.0	1.6	100 pcs / Bag
SP-6	6.3	3.8	4.0	1.6	4.0	1.6
SP-8	8.0	3.8	4.0	1.6	4.0	1.6
SP-10	10.5	3.8	4.0	1.6	4.0	1.6
SP-13	12.7	5.6	4.0	1.6	4.0	1.6
SP-16	15.9	5.6	4.0	1.6	4.0	1.6
SP-17	16.5	5.6	4.0	1.6	4.0	1.6
SP-19	19.1	5.6	4.0	1.6	4.0	1.6
SP-22	22.2	5.6	4.0	1.6	4.0	1.6
SP-25	25.4	5.6	4.0	1.6	4.0	1.6

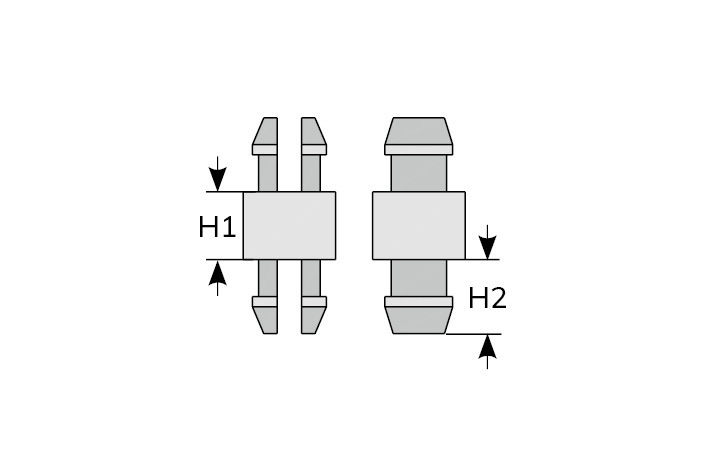

Part No.	H1	H2	P.C.B		Chassis		Packing
			Hole	Thickness	Hole	Thickness
			M1	T1	M2	T2
SP-3S	3.2	3.6	3.2	1.6	3.2	1.6	100 pcs / Bag
