SCREW FASTENED PCB SUPPORT

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Pre-drill a hole on chassis, and fixed by #6 screw.

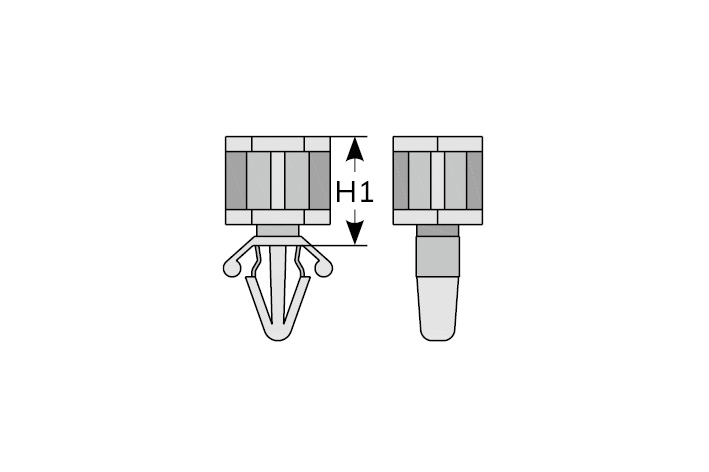

Part No.	H1	P.C.B		Chassis	Packing
		Hole	Thickness	Hole
		M1	T1	M2
CS-5	4.9	4.0	2.0	3.0	100 pcs / Bag
CS-10	9.6	4.0	2.0	3.0
CS-13	12.7	4.0	2.0	3.0
CS-19	19.1	4.0	2.0	3.0
CS-28	28.5	4.0	2.0	3.0
CS-35	35.0	4.0	2.0	3.0

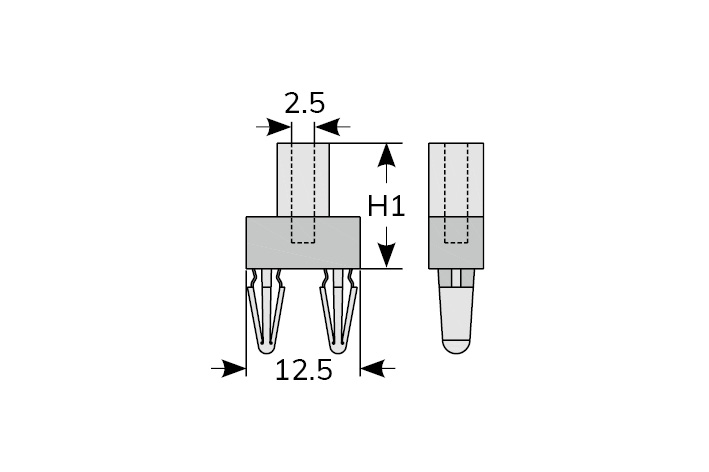

Part No.	H1	P.C.B		Chassis	Packing
		Hole	Thickness	Hole
		M1	T1	M2
CSA-14	13.9	4.0	2.0	2.5	100 pcs / Bag
