PCB SUPPORT

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Stand on design to lock Print circuit board. ● Easy to fix or remove from PC board by hand without tool.

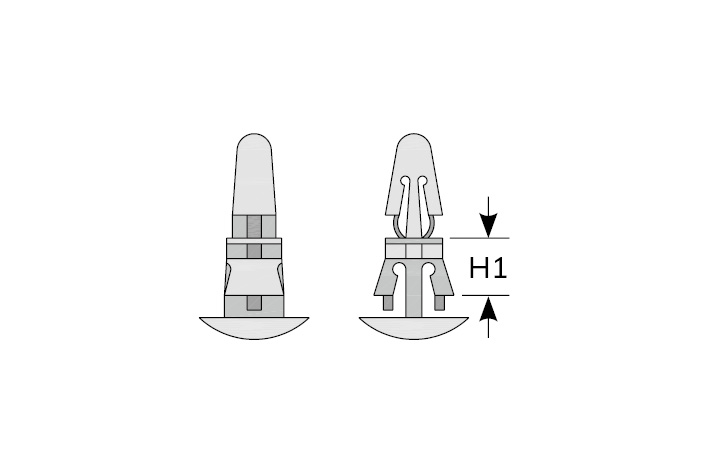

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
RS-2D	2.5	4.0	1.8	5.0	3.2	100 pcs / Bag
RS-5	5.0	4.0	1.8	5.5	1.8
RS-5D	5.0	4.0	1.8	5.0	3.2
RS-5S	5.0	3.0	1.7	4.8	2.0
RS-6	6.1	4.0	1.8	5.5	1.8
RS-6S	5.9	3.5	1.8	5.3	1.8
RS-8	8.0	4.0	1.8	5.5	1.8
RS-12	12.0	4.0	1.8	5.5	1.8
RS-14	14.0	4.0	1.8	5.5	1.8
RS-18	18.0	4.0	1.8	5.5	1.8

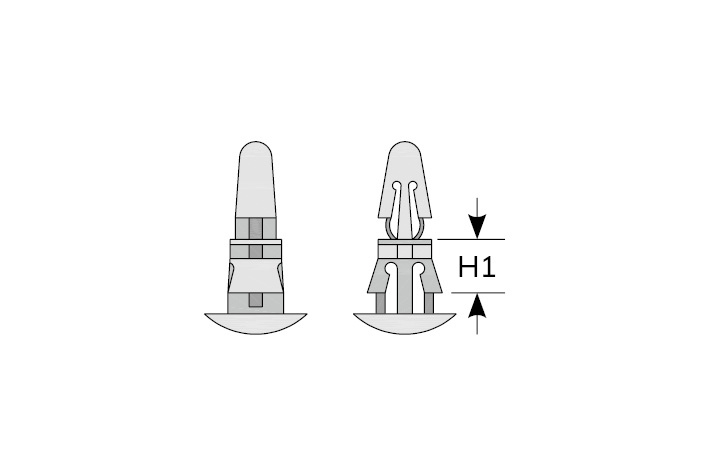

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
RS-3	3.5	4.0	1.8	5.5	1.4	100 pcs / Bag
RS-6B	5.6	4.0	1.8	6.4	1.4

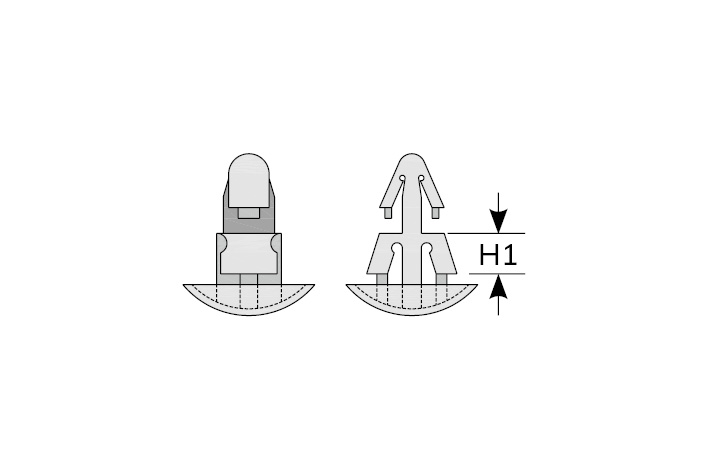

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
RS-10	9.8	4.0	1.8	5.5	1.8	100 pcs / Bag
RS-10S	9.3	4.0	1.6	5.5	1.8
RS-12H	11.8	4.0	1.6	5.5	1.8

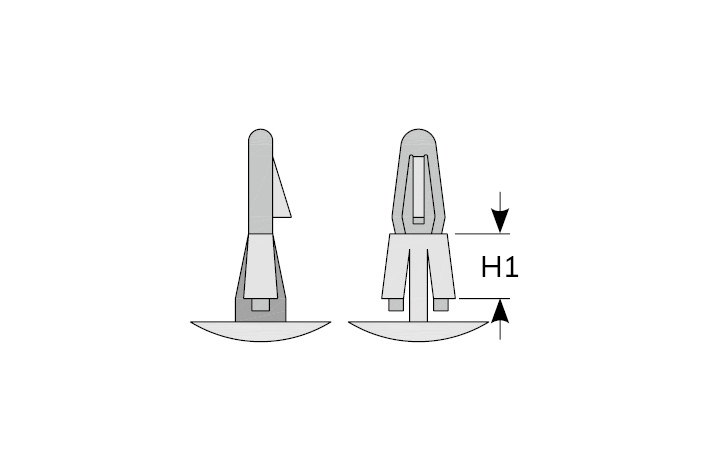

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
RS-6C	6.1	4.2	1.8	5.2	1.4	100 pcs / Bag
RS-12C	12.1	4.2	1.8	5.2	1.4

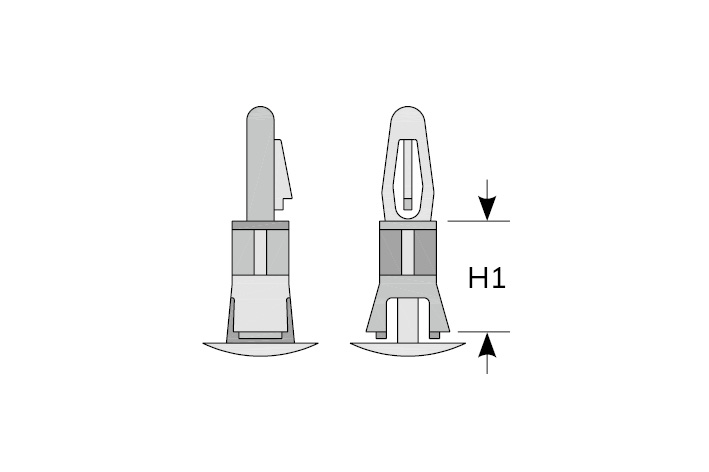

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
RS-8S	6.1	4.0	1.6	5.5	1.8	100 pcs / Bag

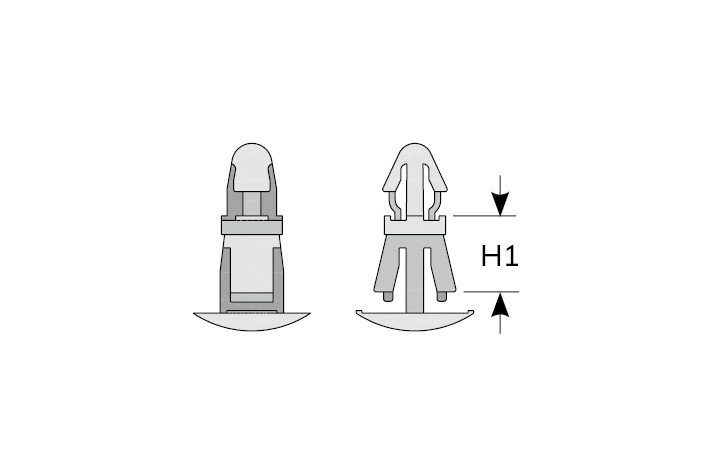

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
RS-6A	5.6	4.0	1.6	6.4	1.8	100 pcs / Bag
RS-7A	6.6	4.0	1.6	5.4	1.6
RS-10A	9.8	4.0	1.6	5.4	1.8

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
RS-10L	9.8	4.0	1.6	5.5	1.8	100 pcs / Bag
