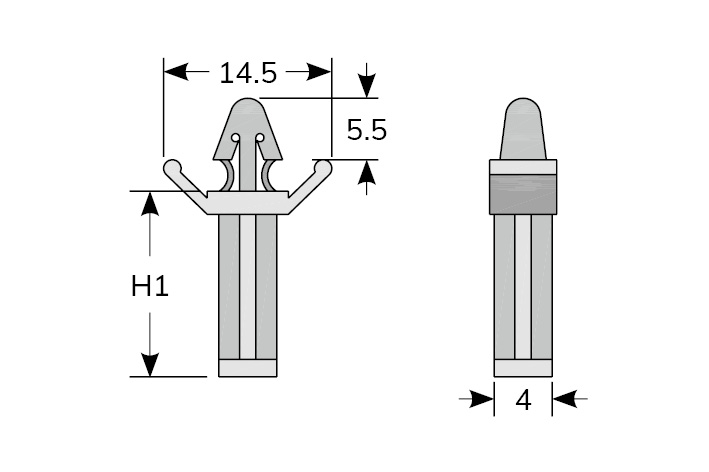

PUSH SPACER

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Pre-drill a hole on PC board and press push spacer into it. ● To support and stabilize PC board

Part No.	H1	P.C.B		Packing
		Hole	Thickness
		M1	T1
PS-5	4.8	4.8	2.0	100 pcs / Bag
PS-6	6.4	4.8	2.0
PS-10	9.6	4.8	2.0
PS-13	12.7	4.8	2.0
PS-16	15.9	4.8	2.0
PS-19	19.1	4.8	2.0
PS-22	22.2	4.8	2.0
PS-25	25.4	4.8	2.0
PS-28	28.5	4.8	2.0
PS-36	35.0	4.8	2.0
