PCB EDGE SPACER

● Material: UL94V-2 flame rated, UL approved Nylon 66 with adhesive tape. ● Color: Natural ● To stabilize PC board, easy to remove.

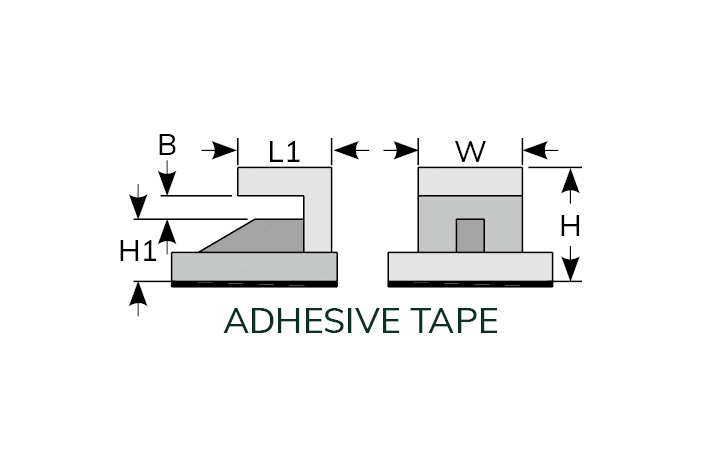

ADHESIVE TAPE
Part No.	L1	W	H	H1	B	Packing
ES-5A	5.5	9.5	10.3	5.4	2.2	100 pcs / Bag

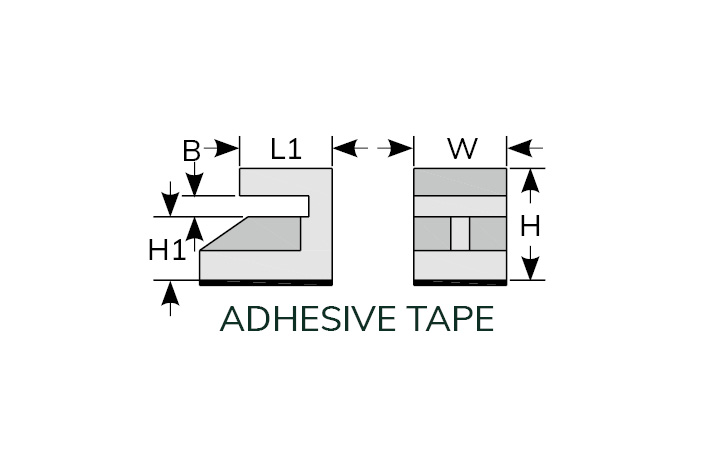

ADHESIVE TAPE
Part No.	L1	W	H	H1	B	Packing
ES-6A	9.0	8.7	10.8	6.0	1.9	100 pcs / Bag

Part No.	L1	W	H	H1	B	Packing
ES-6M	9.3	9.5	10.7	5.8	2.2	100 pcs / Bag

Part No.	L1	W	H	H1	B	Packing
ES-6P	9.0	8.7	10.8	6.0	1.9	100 pcs / Bag

Part No.	L1	W	H	H1	B	Packing
ES-6V	9.0	8.7	10.8	6.0	1.9	100 pcs / Bag

Part No.	L1	W	H	H1	B	Packing
ES-8U	6.7	9.8	13.3	8.4	2.0	100 pcs / Bag
