PCB SUPPORT

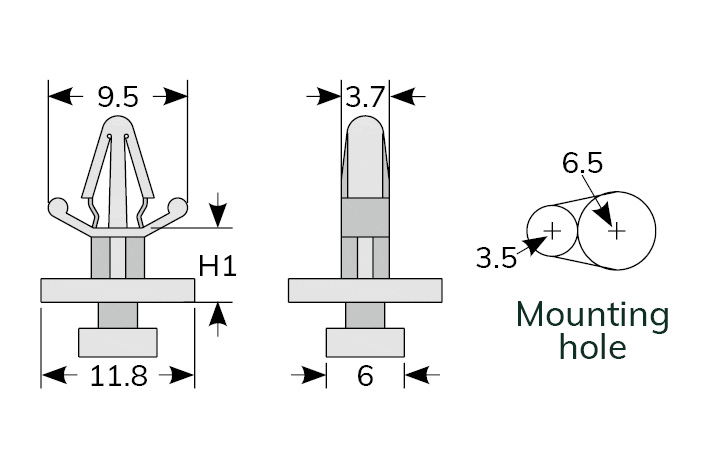

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Drill holes with size on chassis board as shown. ● Push support into larger hole then slide in smaller one to get fixed. ● To stabilize PC board, easy to remove.

Part No.	H1	P.C.B		Packing
		Hole	Thickness
		M1	T1
MS-6	6.4	4.0	2.0	100 pcs / Bag
