PCB SUPPORT

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural, available in other colors.

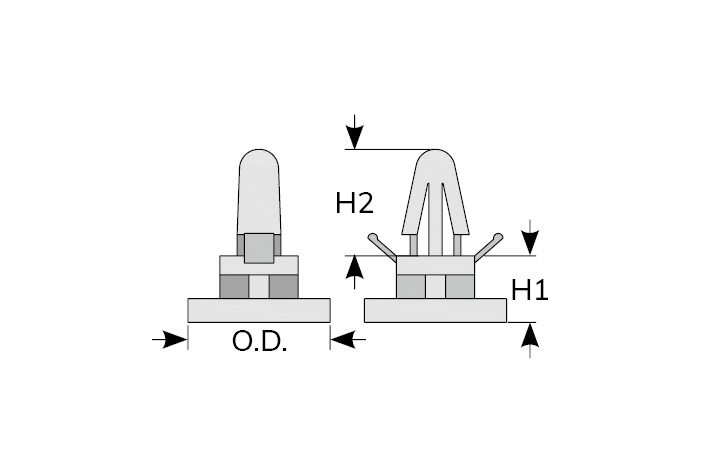

Part No.	O.D.	H1	H2	P.C.B		Packing
				Hole	Thickness
				M1	T1
BMS-5	11.8	5.6	9.5	4.0	2.0	100 pcs / Bag
BMS-5B	9.7	5.6	9.5	4.0	2.0
BMS-5L7	7.1	5.6	9.5	4.8	2.0
BMS-5L	11.8	5.6	9.5	4.8	2.0
BMS-7	11.8	6.5	9.5	4.0	2.0
BMS-8	11.8	8.0	9.5	4.0	2.0
BMS-11	12.0	11.0	9.0	4.0	2.0

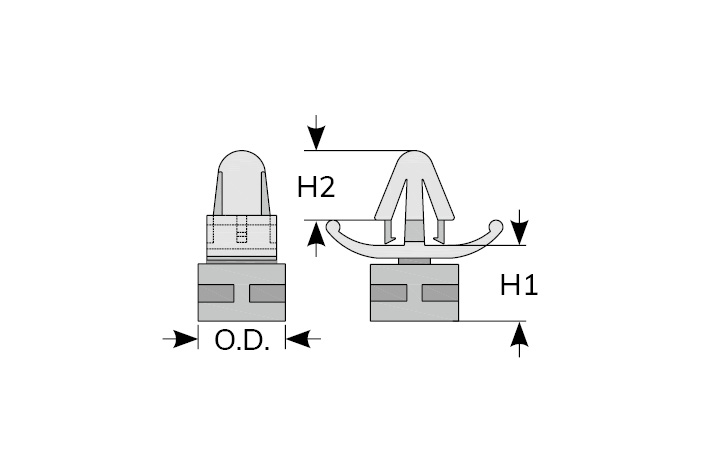

Part No.	O.D.	H1	H2	P.C.B		Packing
				Hole	Thickness
				M1	T1
HMS-6	7.0	6.0	5.0	4.8	2.0	100 pcs / Bag
