| CIRCUIT BOARD TRACK |
  |
 |
| ● | Material: UL94V-2 flame rated, UL approved Nylon 66. |
| ● | Color: Natural, available in other colors. |
| ● | To be fixed by 2 sets of 3mm x 6mm flat-head screw. |
| ★ | BT-90A,BT-155A,BT-160A with snap in design. |
|
 |

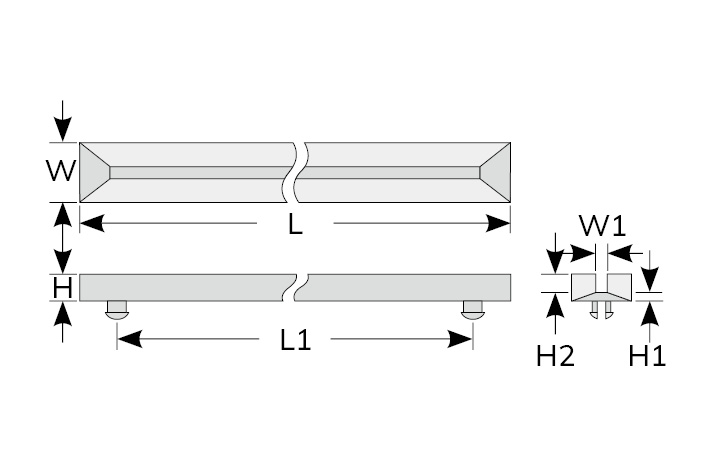

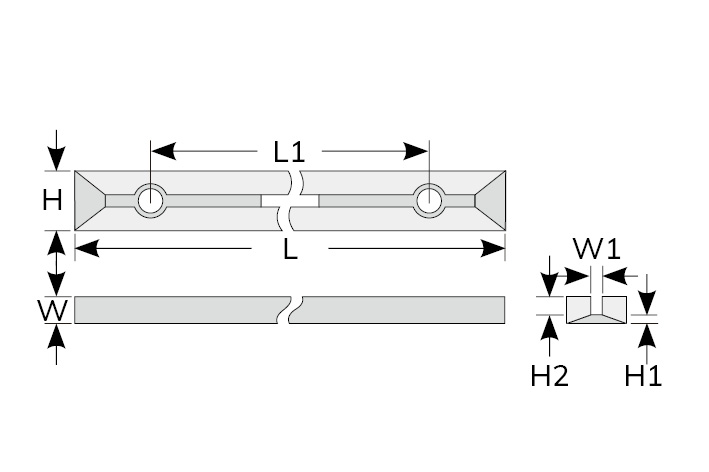

| Part No. | L | L1 | W | W1 | H | H1 | H2 | Packing |
| BT-90 | 89.5 | 64.4 | 9.7 | 2.0 | 4.5 | 1.5 | 3.0 | 100 pcs / Bag |
| BT-120 | 120.0 | 95.5 | 9.5 | 2.0 | 4.5 | 1.5 | 3.0 |
| BT-140 | 141.0 | 115.4 | 10.0 | 1.9 | 4.5 | 1.5 | 3.0 |
| BT-160 | 160.5 | 135.5 | 9.7 | 2.0 | 4.5 | 1.5 | 3.0 |
 |

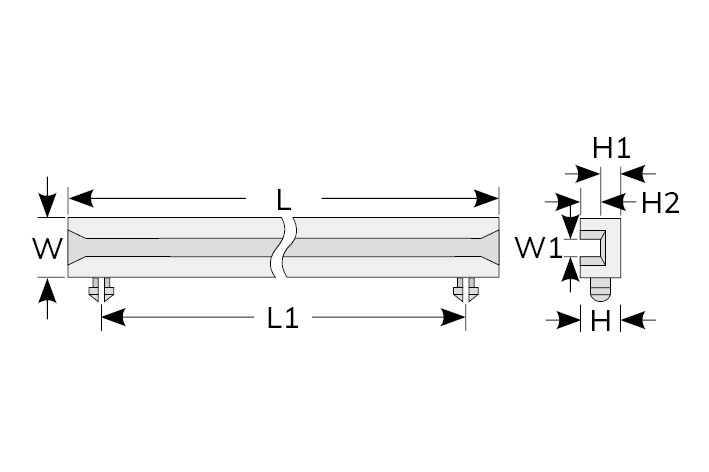

| Part No. | L | L1 | W | W1 | H | H1 | H2 | Packing |
| BT-160A | 162.0 | 148.2 | 9.6 | 2.0 | 6.5 | 4.0 | 2.5 | 100 pcs / Bag |
 |

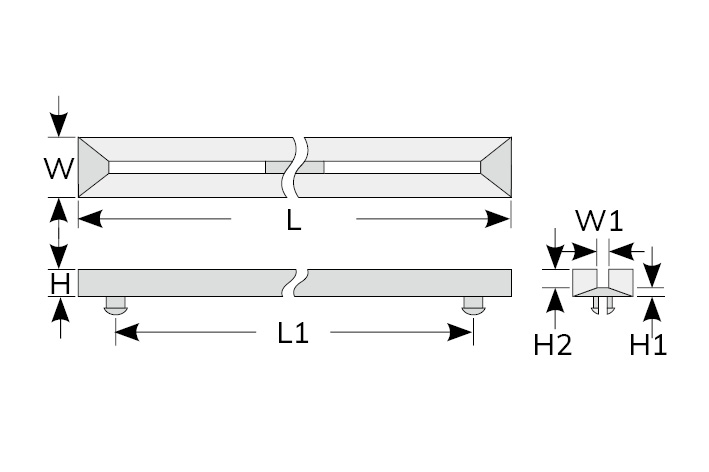

| Part No. | L | L1 | W | W1 | H | H1 | H2 | Packing |
| BT-90A | 89.5 | 77.6 | 9.7 | 2.0 | 4.5 | 1.5 | 3.0 | 100 pcs / Bag |
 |
| Part No. | L | L1 | W | W1 | H | H1 | H2 | Packing |
| BT-77DBK | 77.0 | 67.0 | 6.6 | 1.4 | 6.0 | 3.0 | 3.0 | 100 pcs / Bag |
 |
| Part No. | L | L1 | W | W1 | H | H1 | H2 | Packing |
| BT-155A | 154.0 | 141.0 | 6.6 | 2.0 | 4.6 | 1.3 | 3.3 | 100 pcs / Bag |
