| HEXAGONAL THREADED SPACER |
  |
 |
| ● | Material: UL94V-2 flame rated, UL approved Nylon 66. |
| ● | Color: Natural |
| ● | Application: Used screw and nut to set apart chassis board and PC board. |
|
 |

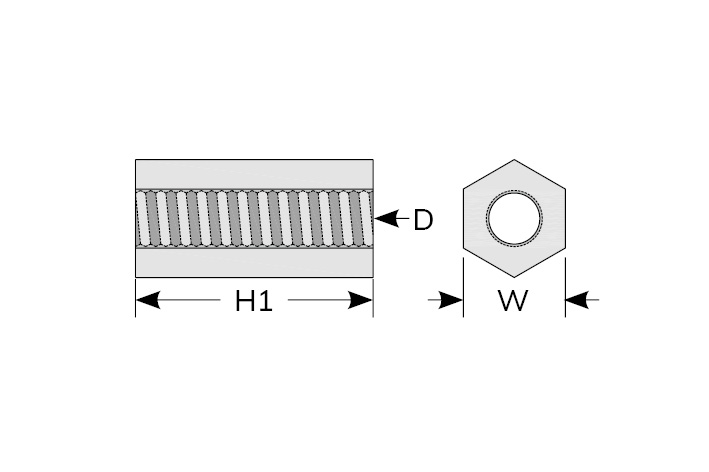

| Part No. | W | H1 | Thread | Packing |
| D |
| HTP-306 | 5.5 | 6.0 | M3x0.5 | 100 pcs / Bag |
| HTP-308 | 5.5 | 8.0 | M3x0.5 |
| HTP-310 | 5.5 | 10.0 | M3x0.5 |
| HTP-312S | 5.5 | 12.1 | M3x0.5 |
| HTP-312 | 5.5 | 12.7 | M3x0.5 |
| HTP-315 | 5.5 | 15.0 | M3x0.5 |
| HTP-318 | 5.5 | 18.0 | M3x0.5 |
| HTP-320 | 5.5 | 20.0 | M3x0.5 |
| HTP-322 | 5.5 | 22.0 | M3x0.5 |
| HTP-325 | 5.5 | 25.0 | M3x0.5 |
| HTP-330 | 5.5 | 30.0 | M3x0.5 |
