PCB SUPPORT

● Material: UL94V-0 flame rated, UL approved Nylon 66. ● Color: White ● Function: To fix PC board. ● Feature: Easy to install by hand without tool. ● Application: Drill hole on chassis board and install spacer then fix on PC board.

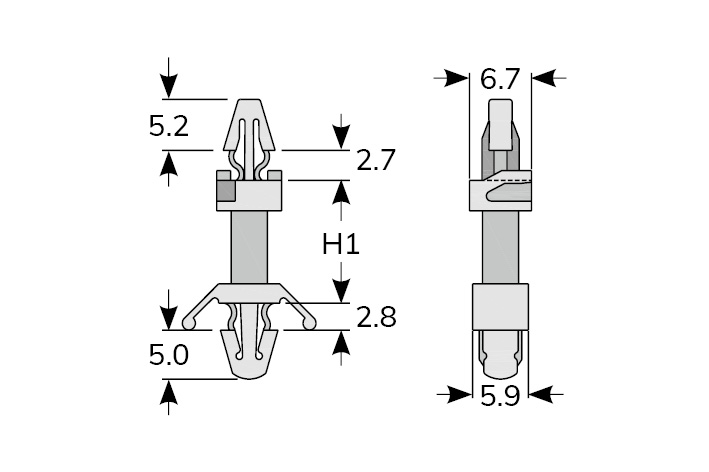

Part No.	H1	P.C.B		Chassis		Packing
		Hole	Thickness	Hole	Thickness
		M1	T1	M2	T2
KCS-0813V0	12.5	4.0	2.5	4.8	2.5	100 pcs / Bag
