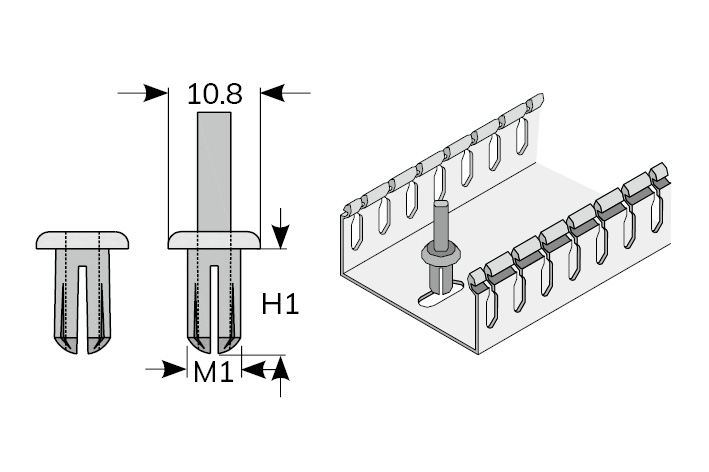

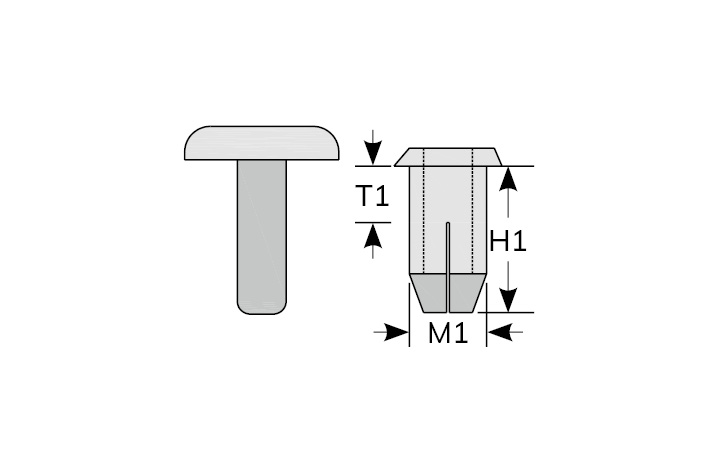

SNAP RIVET

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Black, available in other colors. ● Function: To join chassis board and PC board.

Part No.	H1	For		Packing
		Mounting Hole	Panel thickness
		M1	T1
SR-355K	5.5	3.0	2.5 ~ 4.0	1000 pcs / Bag
SR-365K	6.5	3.0	4.0 ~ 5.0
SR-380K	8.0	3.0	5.5 ~ 6.5
SR-450K	5.0	4.0	2.2 ~ 3.5
SR-465K	6.5	4.0	4.0 ~ 5.0

Part No.	H1	For		Packing
		Mounting Hole	Panel thickness
		M1	T1
SR-0612K	12.3	6.4	7.0 ~ 10.0	1000 pcs / Bag
SR-0815K	14.0	8.2	7.0 ~ 12.0
