SNAP RIVET

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Black, available in other colors. ● Function: To join chassis board and PC board.

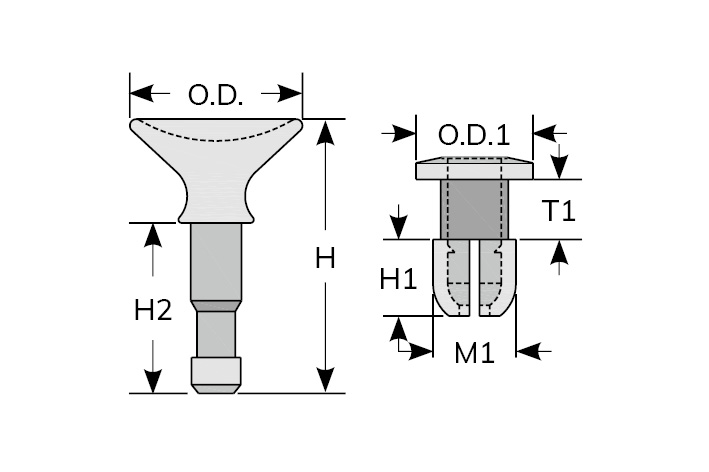

Part No.	H	H1	H2	O.D.	O.D.1	For		Packing
						Mounting Hole	Panel thickness
						M1	T1
SR-0813	25.1	7.0	15.6	15.8	10.7	7.8	5.5	100 pcs / Bag
SR-0910	20.9	7.6	11.4	15.8	10.8	8.1	1.6
