SCREW ON RIVET

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Black, available in other colors. ● Drill holes on chassis board and PC board, press in push rivet to fix two boards. ● Function: To join chassis board and PC board.

Part No.	H	H1	O.D.	O.D.1	For		Packing
					Mounting Hole	Panel thickness
					M1	T1

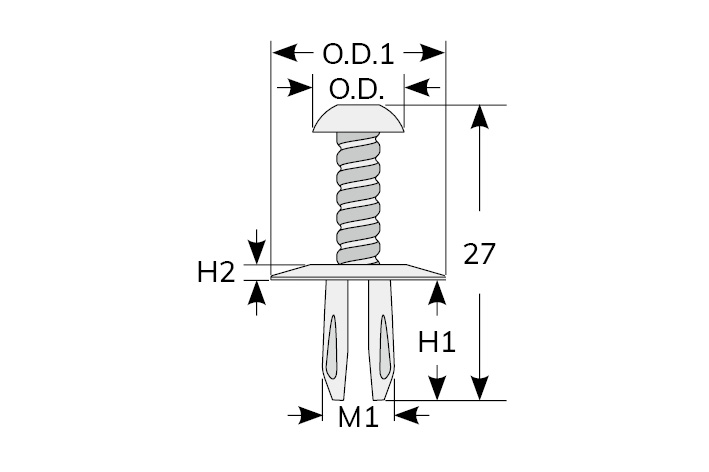

SR-611	11.0	2.4	8.0	14.0	6.0	2.0 ~ 3.5	100 pcs / Bag

Part No.	H	H1	O.D.	O.D.1	For		Packing
					Mounting Hole	Panel thickness
					M1	T1

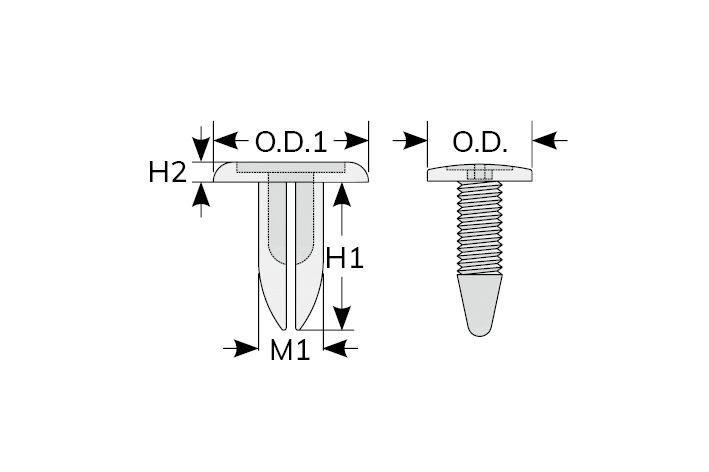

SR-611R	11.0	1.4	8.4	16.0	6.6	1.5 ~ 6.0	100 pcs / Bag

Part No.	H	H1	O.D.	O.D.1	For		Packing
					Mounting Hole	Panel thickness
					M1	T1

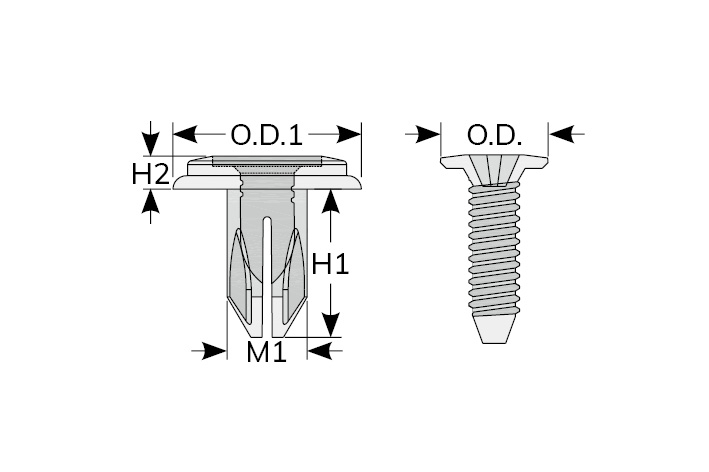

SR-614	14.2	2.0	10.2	15.1	6.3	3.0 ~ 4.5	100 pcs / Bag
