| PUSH RIVET |
  |
 |
| ● | Material: UL94V-2 flame rated, UL approved Nylon 66. |
| ● | Function: To join chassis board and PC board. |
|
 |

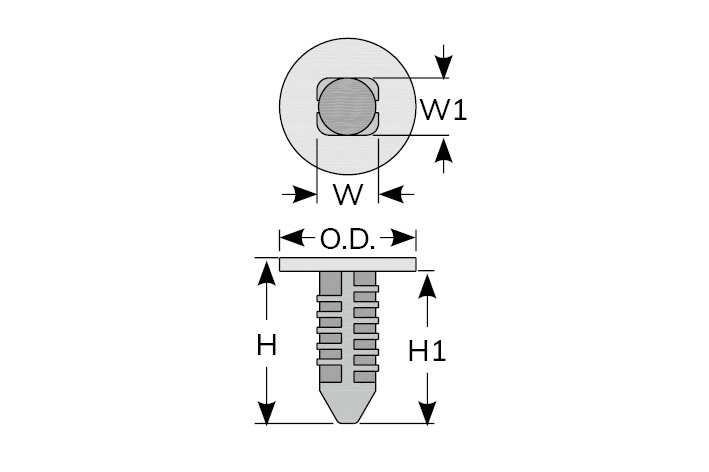

| Part No. | Color | W | W1 | H | H1 | O.D. | Packing |
| SR-0313 | Natural | 3.2 | 3.2 | 14.9 | 12.9 | 6.30 | 100 pcs / Bag |
 |

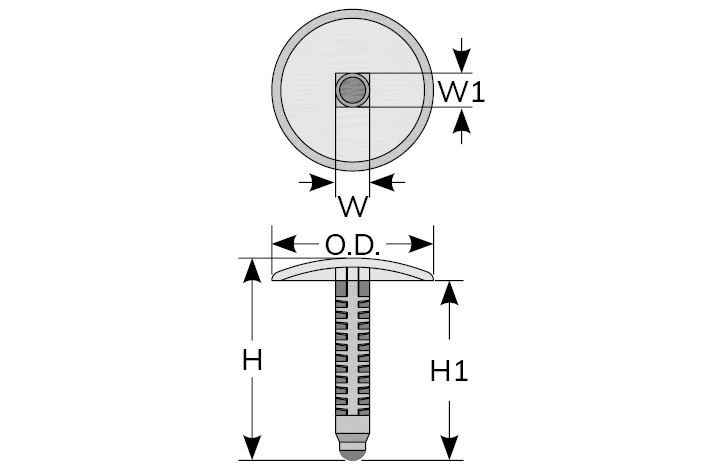

| Part No. | Color | W | W1 | H | H1 | O.D. | Packing |
| SR-0512BK | Black | 5.1 | 4.7 | 13.6 | 12.5 | 11.20 | 100 pcs / Bag |
 |

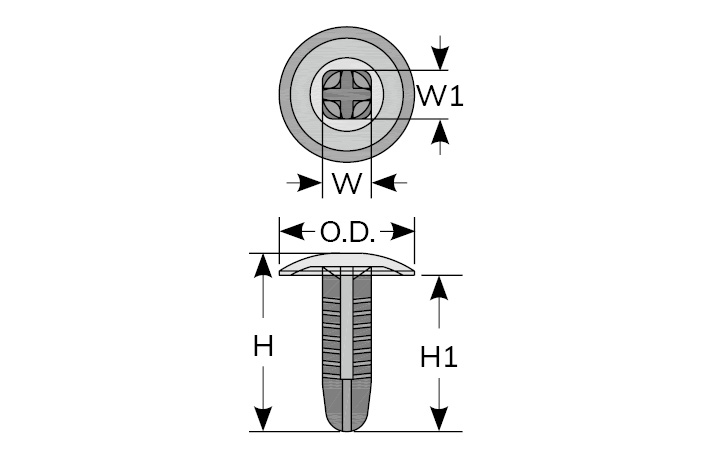

| Part No. | Color | W | W1 | H | H1 | O.D. | Packing |
| SR-1315 | Natural | 4.6 | 4.6 | 17.0 | 14.9 | 12.90 | 100 pcs / Bag |
 |

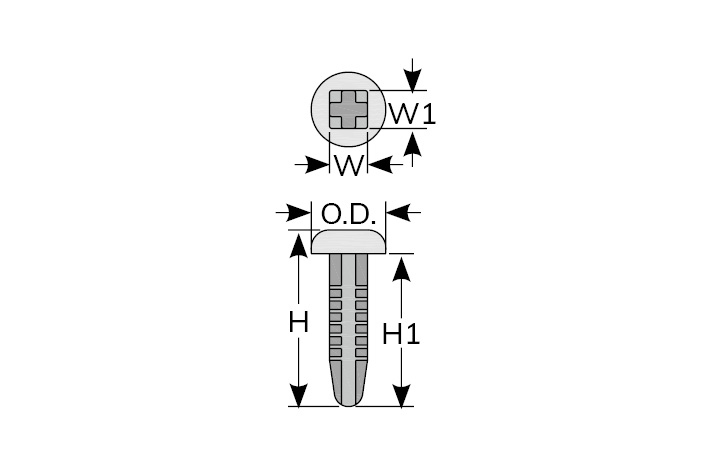

| Part No. | Color | W | W1 | H | H1 | O.D. | Packing |
| SR-0816BK | Black | 8.0 | 8.0 | 17.8 | 15.8 | 15.00 | 100 pcs / Bag |
 |

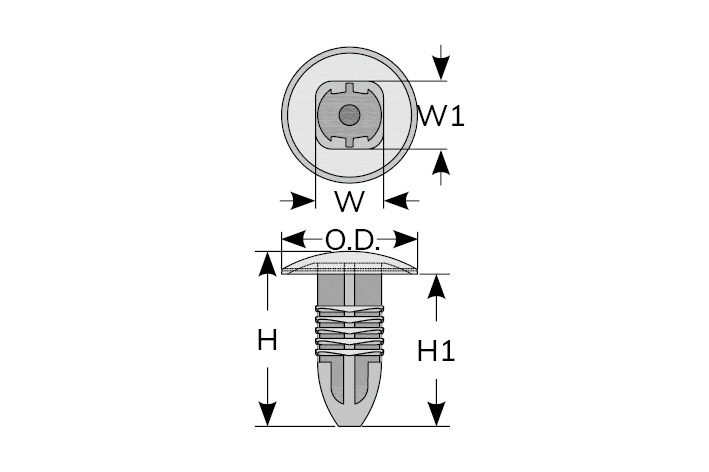

| Part No. | Color | W | W1 | H | H1 | O.D. | Packing |
| SR-0420BK | Black | 3.8 | 3.8 | 22.5 | 20.0 | 18.00 | 100 pcs / Bag |
 |
| Part No. | Color | W | W1 | H | H1 | O.D. | Packing |
| SR-25BK | Black | 6.6 | 6.6 | 27.2 | 25.2 | 17.85 | 100 pcs / Bag |
 |

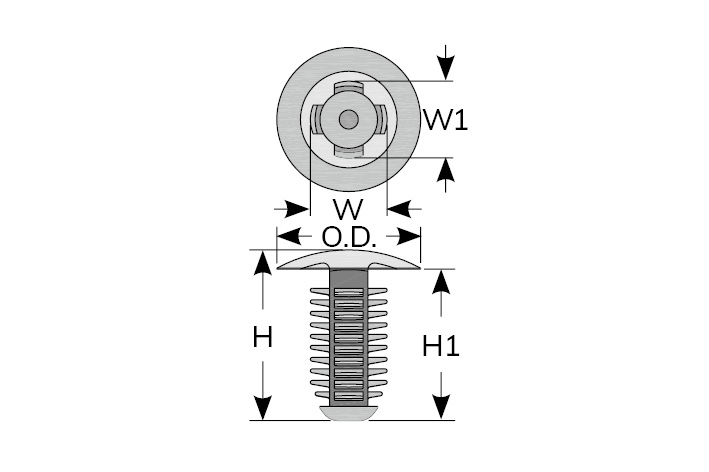

| Part No. | Color | W | W1 | H | H1 | O.D. | Packing |
| SR-0817BK | Black | 7.5 | 7.5 | 19.3 | 16.8 | 15.00 | 100 pcs / Bag |
HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -
