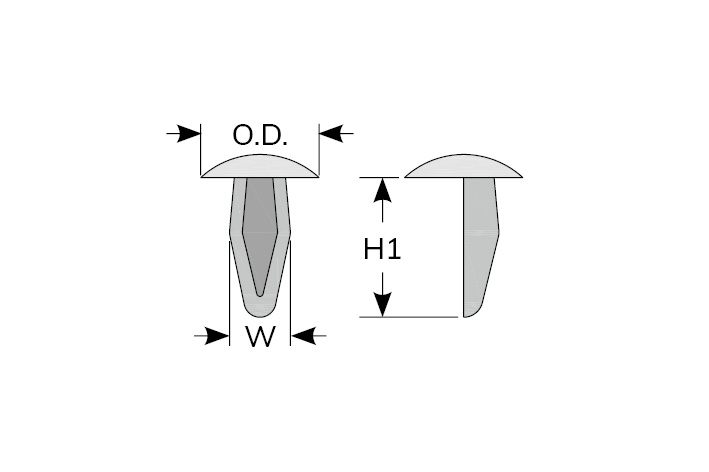

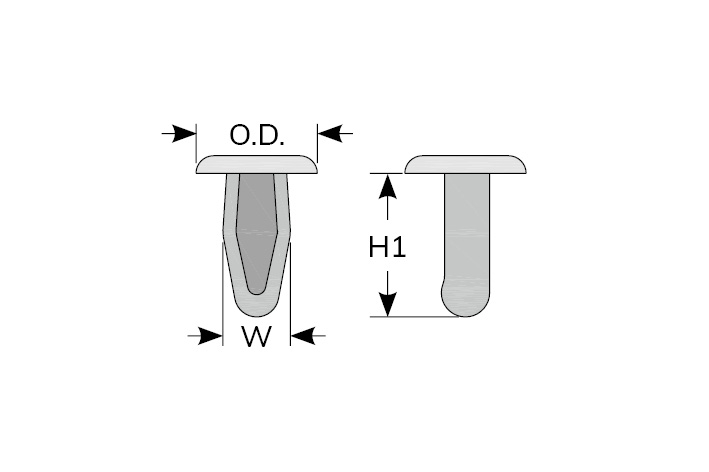

CANOE RIVET

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Function: To join chassis board and PC board.

Part No.	W	H1	O.D.	For		Packing
				Mounting Hole	Panel thickness
				M1	T1
SN-0309	3.8	8.7	7.4	3.3	3.0 ~ 6.0	100 pcs / Bag

Part No.	W	H1	O.D.	For		Packing
				Mounting Hole	Panel thickness
				M1	T1
SN-0511	4.9	11.0	9.2	4.6	2.0 ~ 5.0	100 pcs / Bag
SN-0716	7.5	16.0	12.9	7.2	3.0 ~ 6.0
