WIRE SADDLE

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Application: Pre-drill 4.8mm hole PC board and fix the wire saddle, lock the wire in saddle with fingertip pressure. Can directing and gathering cable in any direction.

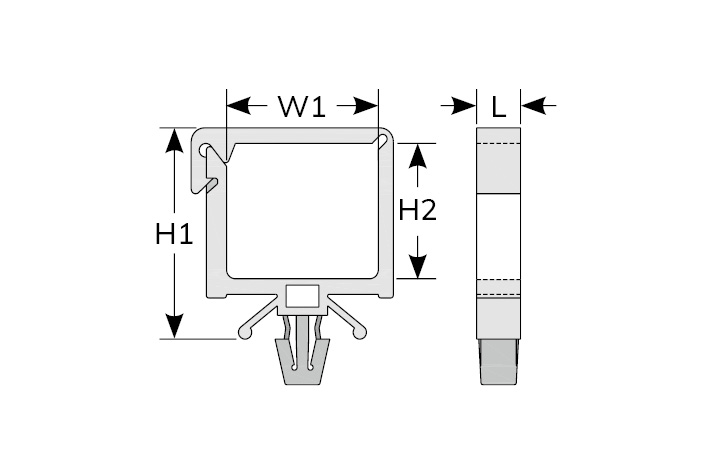

Part No.	Dimension				PCB		Packing
	L	W1	H1	H2	Mounting Hole	Thickness
					M1	T1
PWS-1013	4.8	17.8	10.4	13.8	4.8	2.3	100 pcs / Bag
PWS-1715	5.0	16.7	23.0	15.0	4.8	2.4
