| ● | Material: JWB-0706, JWS-0910 with UL94V-2 flame rated, UL approved Nylon 66 Natural color. |
| ● | Material: JWS-0605V0, JWS-0706V0 with UL94V-0 flame rated, UL approved Nylon 66 White color. |
|
 |
| Part No. | Dimension | Mounting Hole | Thickness | Packing |
| L | W1 | H1 | H2 | M1 | T1 |

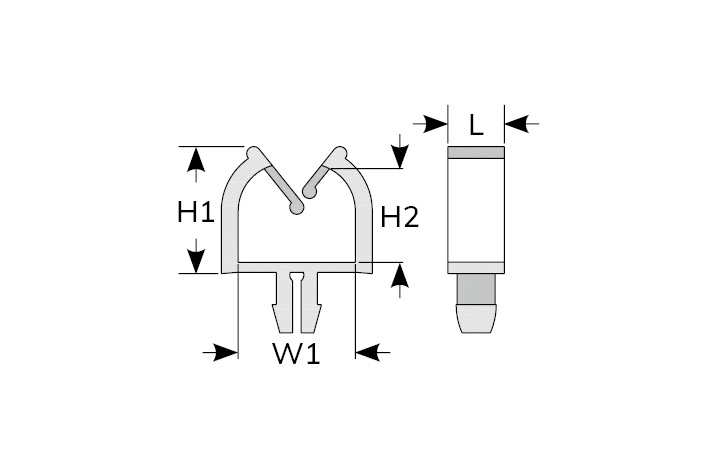

| JWB-0706 | 4.0 | 7.7 | 9.7 | 6.4 | 3.0 | 1.6 | 100 pcs / Bag |
 |
| Part No. | Dimension | Mounting Hole | Thickness | Packing |
| L | W1 | H1 | H2 | M1 | T1 |

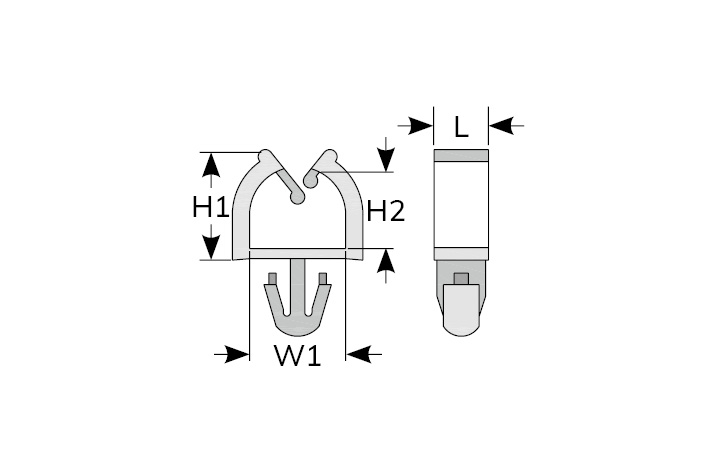

| JWS-0605V0 | 3.8 | 6.6 | 7.8 | 5.0 | 3.5 | 1.6 | 100 pcs / Bag |
| JWS-0706V0 | 3.8 | 7.9 | 9.7 | 6.4 | 3.5 | 1.6 |
| JWS-0910 | 4.0 | 9.3 | 13.4 | 10.7 | 3.5 | 1.0 |
