LOCKING WIRE SADDLE

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Application: Pre-drill 4.8mm hole PC board and fix the wire saddle, lock the wire in saddle with fingertip pressure. Can directing and gathering cable in any direction.

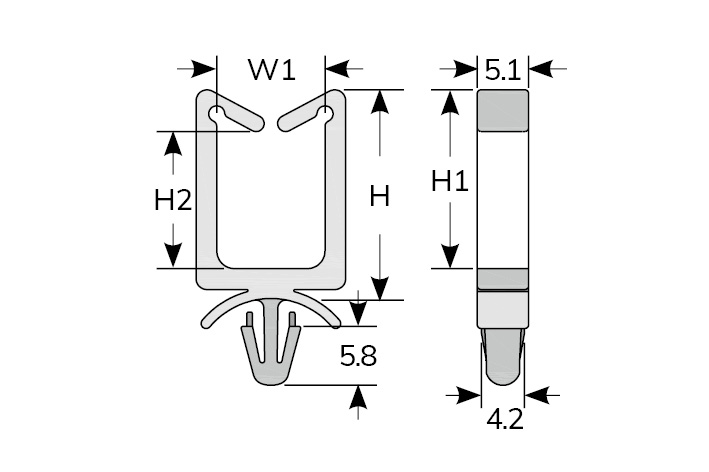

Part No.	Dimension				PCB		Packing
	W1	H	H1	H2	Mounting Hole	Thickness
					M1	T1
KWS-0N	11.0	12.7	9.2	4.0	4.8	2.0	100 pcs / Bag
KWS-1N	11.0	17.9	14.8	9.6	4.8	2.0
KWS-2N	11.3	26.7	23.4	18.4	4.8	2.0
KWS-3N	11.0	34.8	31.3	26.2	4.8	2.0

Part No.	Dimension				PCB		Packing
	W1	H	H1	H2	Mounting Hole	Thickness
					M1	T1
KWS-1114	10.7	21.2	17.8	13.7	4.8	2.4	100 pcs / Bag
