LOCKING WIRE SADDLE

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Application: Pre-drill hole on PC board and fix the wire saddle, lock the wire in saddle with fingertip pressure. Can directing and gathering cable in any direction.

Part No.	Dimension			PCB		Packing
	W	W1	H2	Mounting Hole	Thickness
				M1	T1

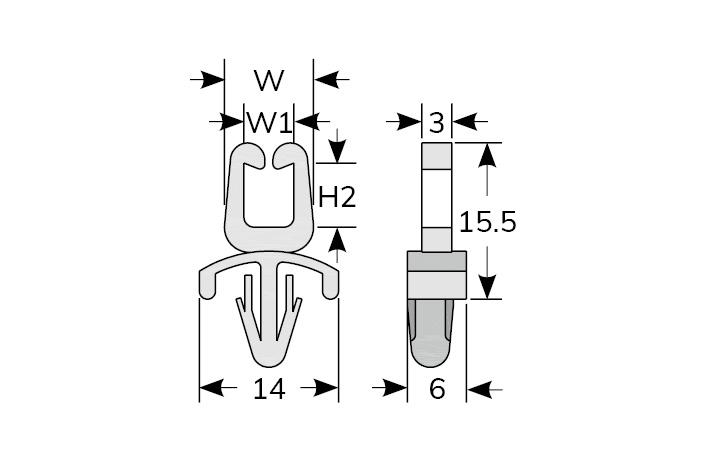

KWS-0506	9.0	5.0	5.4	4.8	3.0	100 pcs / Bag

Part No.	Dimension			PCB		Packing
	W	W1	H2	Mounting Hole	Thickness
				M1	T1

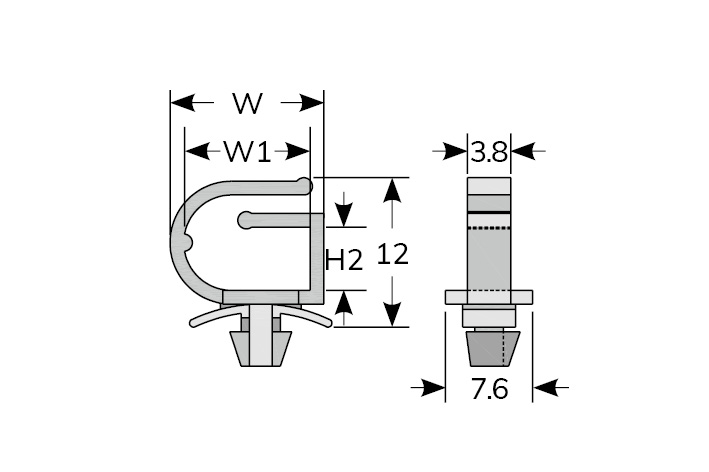

KWS-1106	13.0	10.5	5.4	4.8	1.6	100 pcs / Bag

Part No.	Dimension			PCB		Packing
	W	W1	H2	Mounting Hole	Thickness
				M1	T1

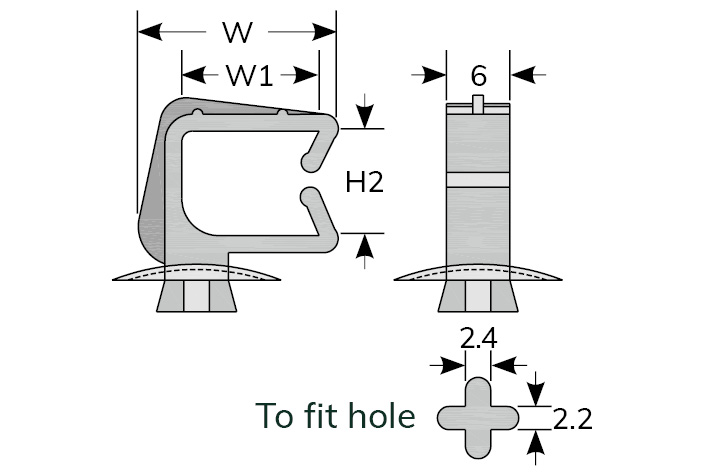

KWS-1110	14.4	10.9	9.8	As Figure	2.2	100 pcs / Bag

Part No.	Dimension			PCB		Packing
	W	W1	H2	Mounting Hole	Thickness
				M1	T1

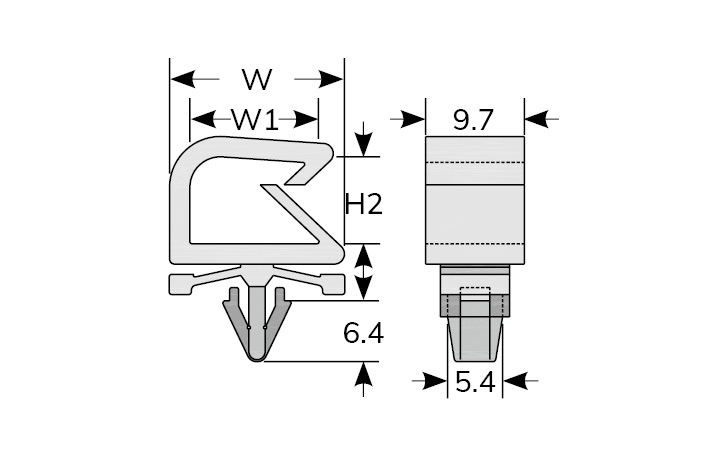

KWS-1308	17.2	12.7	8.5	5.8	1.6	100 pcs / Bag

Part No.	Dimension			PCB		Packing
	W	W1	H2	Mounting Hole	Thickness
				M1	T1

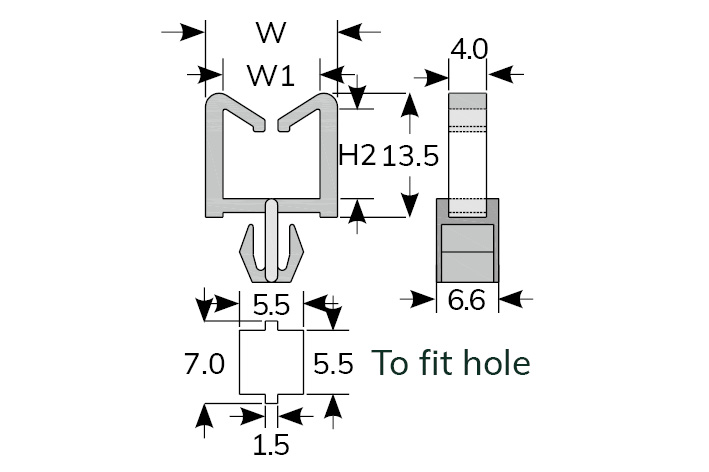

KWS-1310	18.8	13.0	9.9	As Figure	As Figure	100 pcs / Bag

Part No.	Dimension			PCB		Packing
	W	W1	H2	Mounting Hole	Thickness
				M1	T1

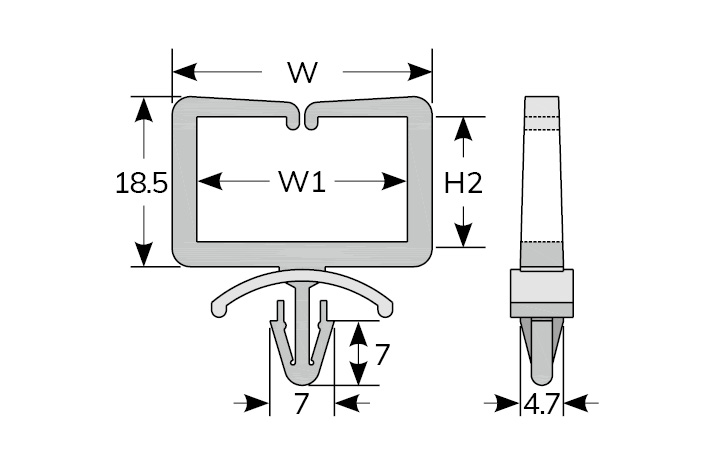

KWS-2314	28.3	22.9	13.6	4.8	3.4	100 pcs / Bag
