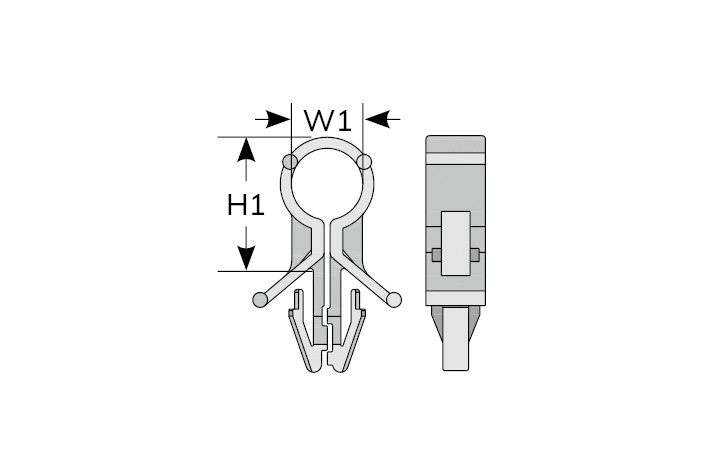

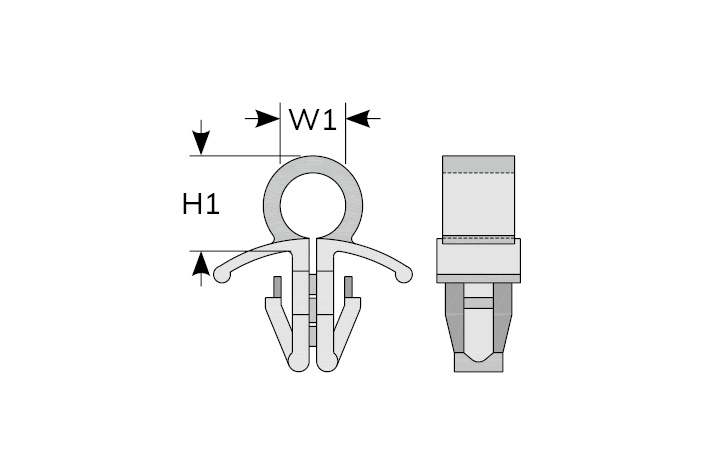

WIRE SADDLE

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural

Part No.	Dimension		PCB		Packing
	W1	H1	Mounting Hole	Thickness
			M1	T1
RH-5	5.1	8.0	5.5	2.0	100 pcs / Bag
RH-8	7.5	11.5	6.2	2.0

Part No.	Dimension		PCB		Packing
	W1	H1	Mounting Hole	Thickness
			M1	T1
RH-6	6.2	9.5	8.0	1.8	100 pcs / Bag

Part No.	Dimension		PCB		Packing
	W1	H1	Mounting Hole	Thickness
			M1	T1
RH-9	9.6	18.0	9.5	2.0	100 pcs / Bag
