STANDOFF TWIST TIE

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Natural ● Locking into pre-drilled hole, Insert cables and twist on to fix.

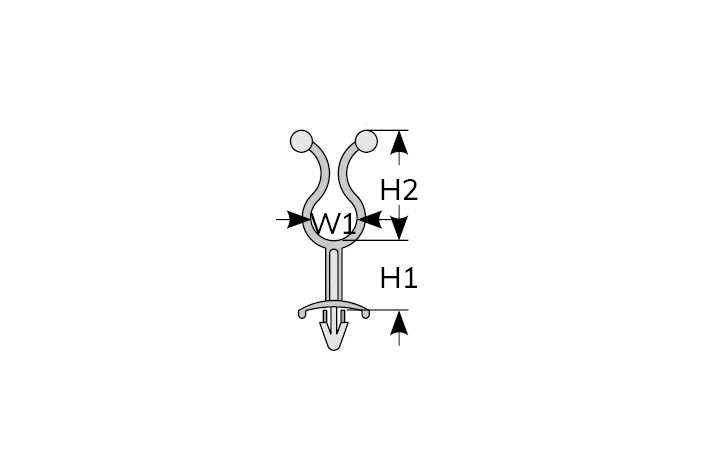

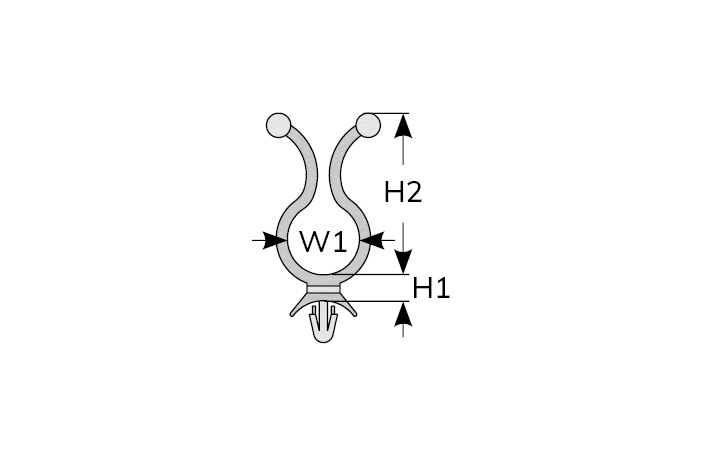

Part No.	Dimension			Mounting Hole	Thickness	Packing
	W1	H1	H2	M1	T1
ST-1	6.0	31.7	19.5	4.6~4.8	1.0~2.8	100 pcs / Bag
ST-2	11.0	21.2	27.8	4.8~5.0	1.0~2.8
ST-3	10.4	4.7	27.3	4.6~4.8	1.0~2.8
ST-3B	11.0	5.0	28.0	6.2~6.6	0.5~2.0
ST-4	15.0	13.1	31.3	4.6~4.8	1.0~2.0
ST-0560	5.0	60.9	20.5	4.6~5.0	1.6~3.0
ST-1602	16.0	5.1	31.7	4.4~4.6	0.5~1.6

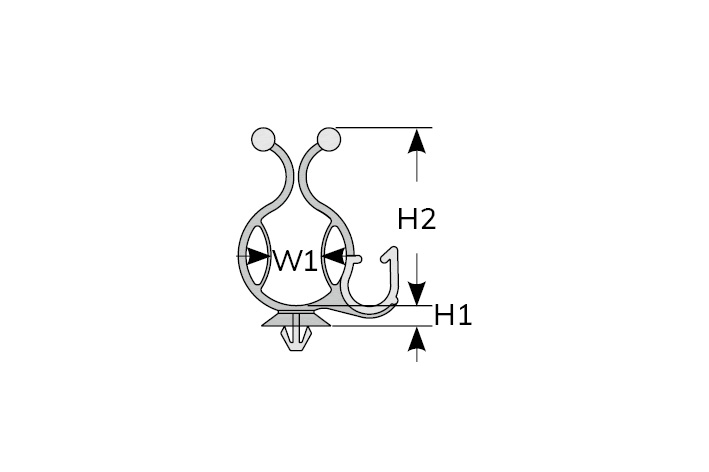

Part No.	Dimension			Mounting Hole	Thickness	Packing
	W1	H1	H2	M1	T1
ST-3D	18.0	5.3	36.2	4.4~4.8	1.0~2.4	100 pcs / Bag

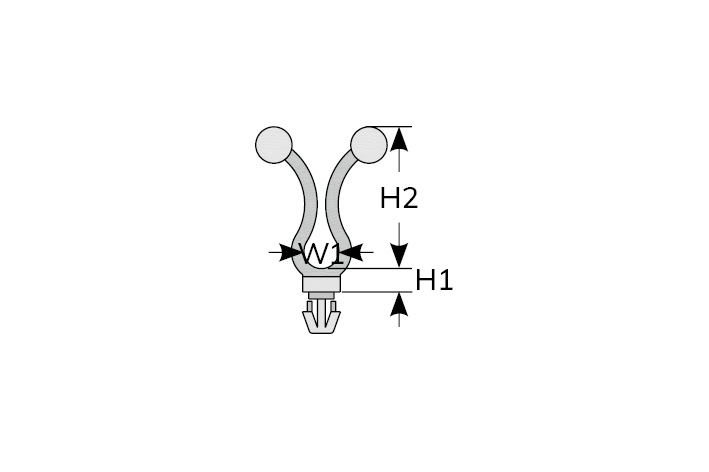

Part No.	Dimension			Mounting Hole	Thickness	Packing
	W1	H1	H2	M1	T1
ST-3C	15.0	5.0	32.0	4.6~4.8	0.5~1.6	100 pcs / Bag

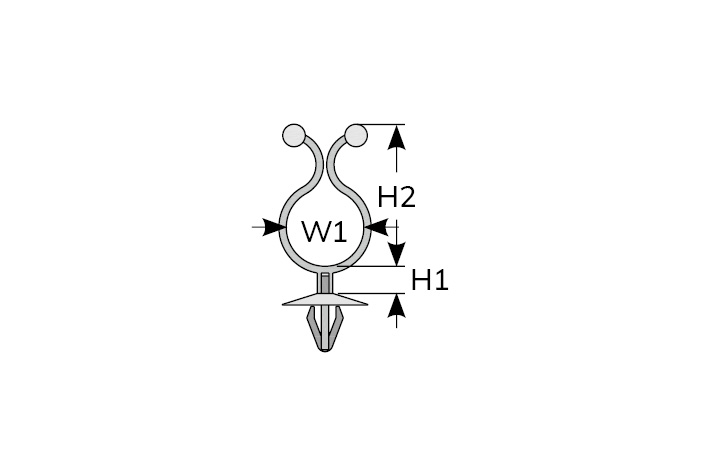

Part No.	Dimension			Mounting Hole	Thickness	Packing
	W1	H1	H2	M1	T1
ST-4S	11.0	13.0	27.9	4.2~4.8	1.0~2.4	100 pcs / Bag

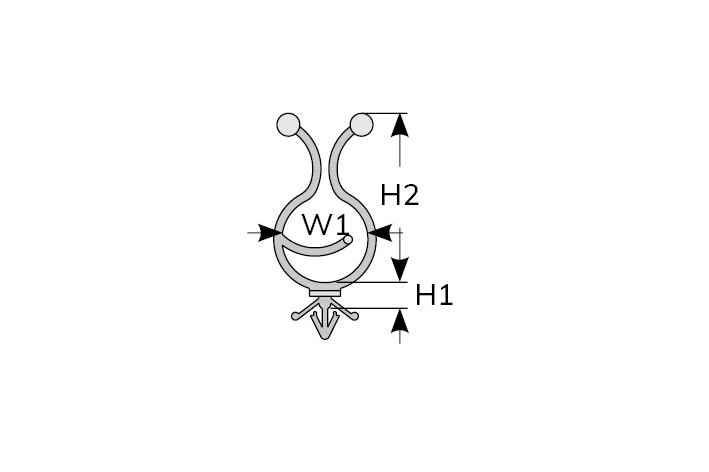

Part No.	Dimension			Mounting Hole	Thickness	Packing
	W1	H1	H2	M1	T1
ST-0605	6.1	5.3	19.3	4.0~4.4	2.4	100 pcs / Bag

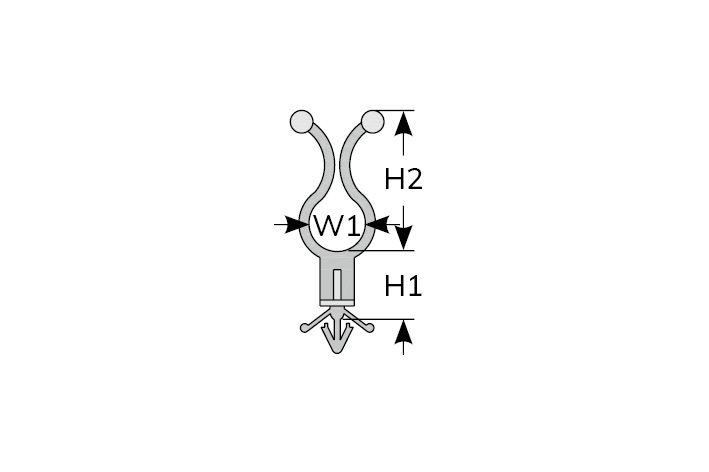

Part No.	Dimension			Mounting Hole	Thickness	Packing
	W1	H1	H2	M1	T1
ST-0701	7.0	1.3	22.0	4.6~4.8	1.0~2.8	100 pcs / Bag

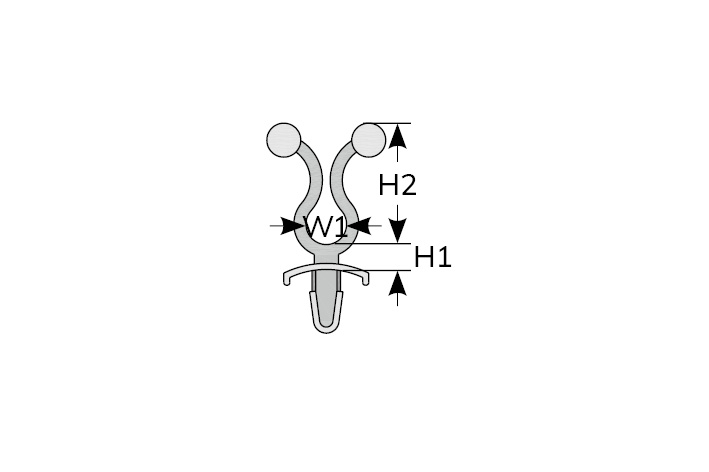

Part No.	Dimension			Mounting Hole	Thickness	Packing
	W1	H1	H2	M1	T1
ST-1112	11.0	15.3	26.8	4.6~4.8	1.6~3.0	100 pcs / Bag
ST-1247	11.0	50.5	27.2	4.6~4.8	1.6~3.0

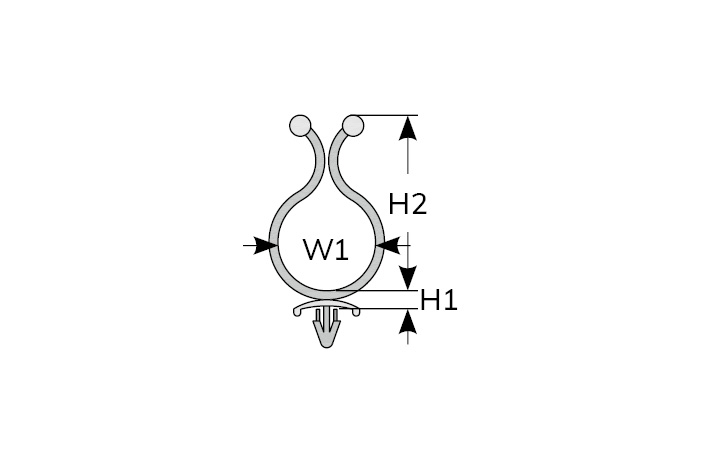

Part No.	Dimension			Mounting Hole	Thickness	Packing
	W1	H1	H2	M1	T1
ST-1303	13.5	3.0	45.0	6.6	1.8~3.6	100 pcs / Bag

Part No.	Dimension			Mounting Hole	Thickness	Packing
	W1	H1	H2	M1	T1
ST-2005	20.0	5.1	36.5	7.2~7.6	1.8~3.6	100 pcs / Bag

Part No.	Dimension			Mounting Hole	Thickness	Packing
	W1	H1	H2	M1	T1
ST-2403	23.5	3.2	44.2	4.8~5.0	0.5~2.6	100 pcs / Bag
