| TRANSISTOR HOUSING |
  |
 |
| ● | Material: UL94V-2 flame rated, UL approved Nylon 66. |
| ● | Color: Natural. |
| ※ | TW-123ABK Black color. |
|
 |

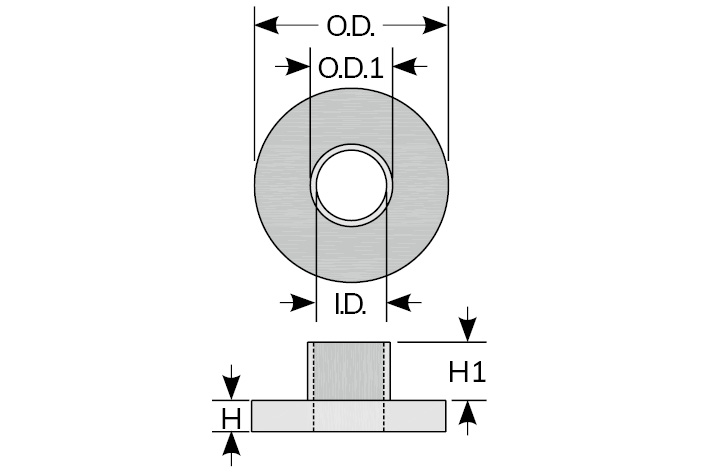

| Part No. | H | H1 | O.D. | I.D.1 | I.D. | Packing |
| TW-63A | 0.5 | 8.1 | 6.0 | 3.5 | 2.8 | 100 pcs / Bag |
| TW-63B | 1.2 | 1.4 | 6.0 | 3.5 | 2.9 |
| TW-63C | 1.7 | 2.3 | 6.0 | 3.5 | 2.9 |
| TW-63D | 1.9 | 3.2 | 6.0 | 3.5 | 2.9 |
| TW-63E | 2.0 | 2.6 | 6.1 | 3.5 | 2.9 |
| TW-63F | 1.3 | 2.0 | 6.3 | 3.4 | 2.9 |
| TW-73A | 3.0 | 1.8 | 6.6 | 4.2 | 3.2 |
| TW-73B | 1.3 | 2.5 | 6.9 | 3.6 | 2.9 |
| TW-83A | 1.3 | 3.7 | 7.7 | 5.8 | 3.1 |
| TW-83B | 1.2 | 5.6 | 7.8 | 3.6 | 2.9 |
| TW-83C | 2.0 | 0.9 | 7.8 | 4.3 | 3.2 |
| TW-83D | 1.3 | 2.3 | 8.0 | 3.5 | 2.9 |
| TW-83E | 3.7 | 1.2 | 7.8 | 5.9 | 3.2 |
| TW-123ABK | 0.5 | 3.0 | 12.0 | 5.9 | 3.2 |
| TW-133A | 1.5 | 1.7 | 12.7 | 7.9 | 3.7 |
| TW-163A | 1.5 | 2.0 | 16.0 | 6.0 | 3.2 |
| TW-189A | 3.3 | 1.5 | 18.0 | 12.4 | 9.3 |
HAYATA P.C. ENTERPRISE CO., LTD.
