PLASTIC SCREWS

● Material: UL94HB flame rated, UL approved PC / UL94V-2 flame rated, UL approved Nylon 66. ● For better insulation, light weight, no rust. ● Used extensively as metal screw but where insulation is needed.Good for computer or electronics equipment fixation. ● For Nylon 66, Add “N” to Item No.

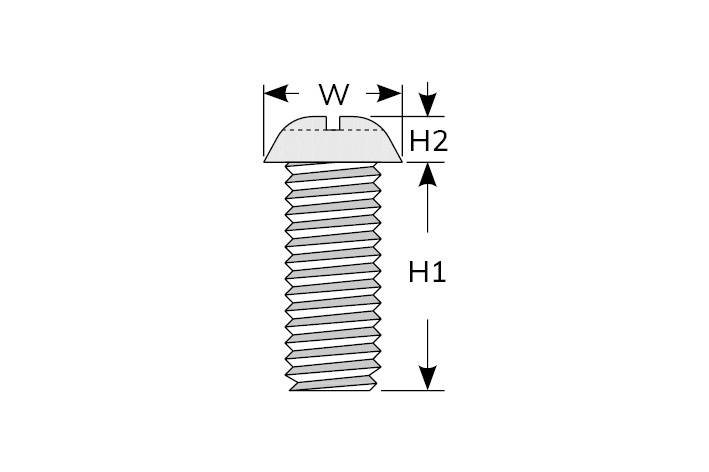

Part No.		Thread	W	H1	H2	Packing
PC	Nylon
	PF-205NK	M2 x 0.4	4.5	5.0	1.6	1000 pcs / Bag
	PF-208NK		4.5	8.0
	PF-210NK		4.5	10.0
PF-306K	PF-306NK	M3 x 0.5	5.3	6.0	2.5
PF-308K	PF-308NK		5.3	8.0
PF-310K	PF-310NK		5.3	10.0
PF-312K	PF-312NK		5.3	12.0
PF-408K	PF-408NK	M4 x 0.7	7.5	8.0	2.6
PF-410K	PF-410NK		7.5	10.0
PF-412K	PF-412NK		7.5	12.0
PF-414K	PF-414NK		7.5	14.0
PF-420K	PF-420NK		7.5	20.0
PF-425K	PF-425NK		7.5	25.0
PF-520K	PF-520NK	M5 x 0.8	8.7	20.0	3.5
PF-530K	PF-530NK		8.7	30.0
PF-540K	PF-540NK		8.7	40.0
PF-620K	PF-620NK	M6 x 1.0	10.0	20.0	4.0
PF-630K	PF-630NK		10.0	30.0
PF-640K	PF-640NK		10.0	40.0

Part No.		Thread	W	H1	H2	Packing
PC	Nylon
	PF-820N	M8 x 1.25	12.8	20.0	5.4	100 pcs / Bag
	PF-830N		12.8	30.0
	PF-840N		12.8	40.0
	PF-1030SN	M10 x 1.5	13.6	30.0	5.5
	PF-1030N		16.6	30.0
	PF-1040SN		13.6	40.0
	PF-1040N		16.6	40.0

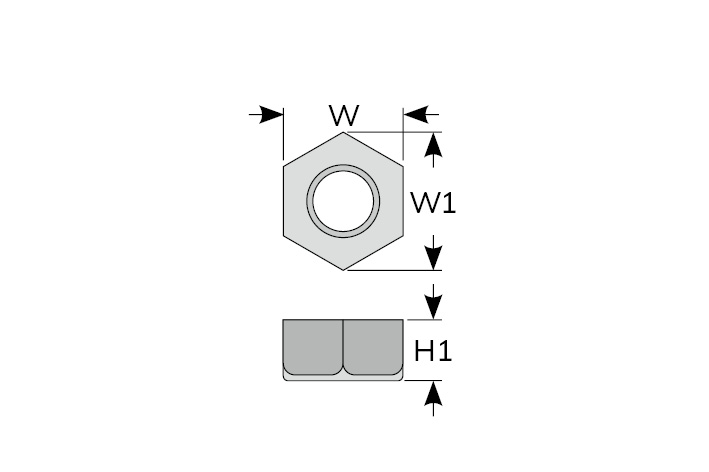

Part No.		Thread	W	H1	H2	Packing
PC	Nylon
	PN-2NK	M2 x 0.4	4.0	4.5	1.5	1000 pcs / Bag
PN-3K	PN-3NK	M3 x 0.5	5.6	6.4	2.7
PN-4K	PN-4NK	M4 x 0.7	7.0	8.1	3.2
PN-5K	PN-5NK	M5 x 0.8	8.0	9.2	4.0
PN-6K	PN-6NK	M6 x 1.0	10.0	11.5	5.0
	PN-8N	M8 x 1.25	12.8	14.5	6.4	100 pcs / Bag
	PN-10N	M10 x 1.5	16.7	19.2	8.0
