| ● | Material : Copper tube with UL94V-2 / V-0 flame rated, UL approved Nylon 66 cover. |
| ● | Tested by the glow-wire flammability index (GWFI), at a glow wire temperature of 800℃ for UL94V-2 grade and 960℃ for UL94V-0 grade. |
| ● | Insert pre-stripped wires then use crimping tool to hold wires firmly. |
|
 |

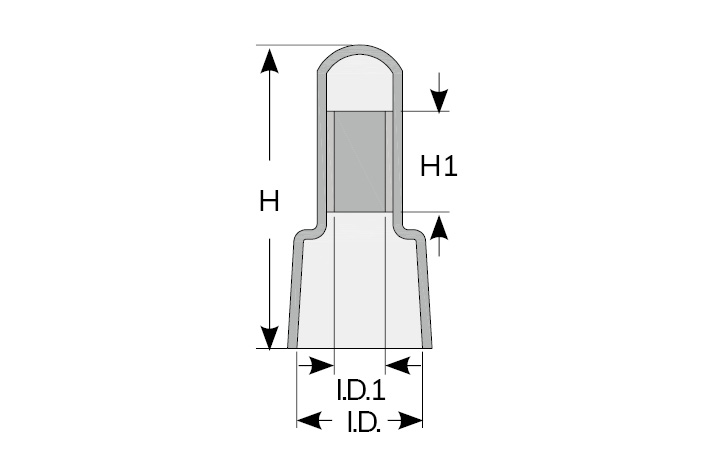

| Part No. | I.D. | I.D.1 | H | H2 | Suitable Wires | Packing |
| UL94V-2 | UL94V-0 | mm2 | AWG | DIN mm²d |
| CE-1 | CE-1V0 | 7.8 | 2.4 | 20.0 | 7.0 | 1.25 | 22 ~ 16 | 0.5 ~ 1.75 | 100 pcs / Bag |
| CE-2 | CE-2V0 | 8.0 | 3.0 | 20.0 | 7.0 | 2.0 | 16 ~ 14 | 1.0 ~ 3.00 |
| CE-5 | CE-5V0 | 10.5 | 3.8 | 25.3 | 8.0 | 5.5 | 12 ~ 10 | 2.5 ~ 6.00 |
| CE-8 | CE-8V0 | 12.0 | 4.7 | 27.8 | 8.5 | 8 | 8 | 4.0 ~ 9.00 |
