SCREW ON WIRE CONNECTOR

BANDEX
CABLE ACCESSORIES

●	Material: Steel with UL94V-2 flame rated thermoplastic cover.
●	Strip wires before application.
●	Rated at 600 volt max. for building wiring.
●	Temp. 105℃ (221℉)
●	Spring design provided more secure connection.

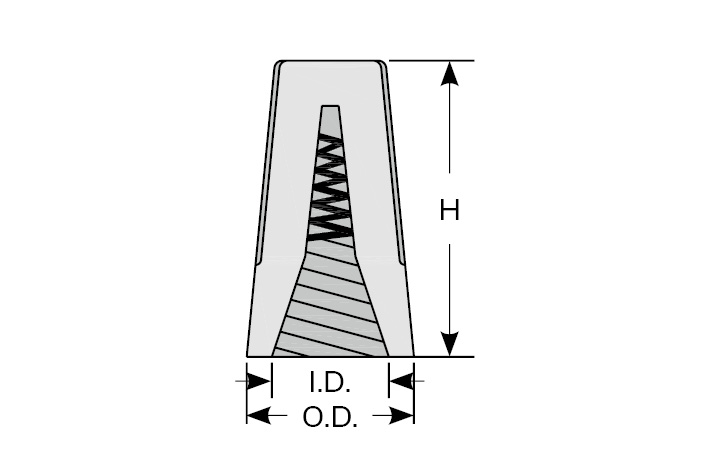

Part No. O.D. I.D. H Wire Combination Color Packing
JIS AWG
SW-71BH 8.6 6.5 15.2 Max. 1 #1.25 w/1 #0.75 w/1 #0.5
Min. 2 #0.5 Max. 1 #16 w/1 #18 w/1 #20
Min. 2 #22 Grey 100 pcs / Bag
SW-72BH 9.9 7.1 17.7 Max. 3 #1.25
Min. 2 #0.5 Max. 3 #16
Min. 2 #22 Blue
SW-73BH 12.7 9.7 22.0 Max. 4 #1.25 w/1 #0.5
Min. 1 #0.75 w/1 #0.5 Max. 4 #16 w/1 #20
Min. 1 #18 w/1 #20 Orange
SW-74BH 14.0 11.0 24.6 Max. 2 #3.5 w/2 #2.0
Min. 3 #0.5 Sol Max. 2 #12 w/2 #14
Min. 3 #20 Sol Yellow
SW-76BH 16.3 13.1 26.5 Max. 2 #5.5 Sol w/2 #3.5 Str
Min. 3 #0.75 Max. 2 #10 Sol w/2 #12 Str
Min. 3 #18 Red

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -


Part No.	O.D.	I.D.	H	Wire Combination		Color	Packing
Part No.	O.D.	I.D.	H	JIS	AWG	Color	Packing
SW-71BH	8.6	6.5	15.2	Max. 1 #1.25 w/1 #0.75 w/1 #0.5 Min. 2 #0.5	Max. 1 #16 w/1 #18 w/1 #20 Min. 2 #22	Grey	100 pcs / Bag
SW-72BH	9.9	7.1	17.7	Max. 3 #1.25 Min. 2 #0.5	Max. 3 #16 Min. 2 #22	Blue
SW-73BH	12.7	9.7	22.0	Max. 4 #1.25 w/1 #0.5 Min. 1 #0.75 w/1 #0.5	Max. 4 #16 w/1 #20 Min. 1 #18 w/1 #20	Orange
SW-74BH	14.0	11.0	24.6	Max. 2 #3.5 w/2 #2.0 Min. 3 #0.5 Sol	Max. 2 #12 w/2 #14 Min. 3 #20 Sol	Yellow
SW-76BH	16.3	13.1	26.5	Max. 2 #5.5 Sol w/2 #3.5 Str Min. 3 #0.75	Max. 2 #10 Sol w/2 #12 Str Min. 3 #18	Red
