SCREW ON WIRE CONNECTOR

BANDEX
CABLE ACCESSORIES

●	Material: Steel with UL94V-2 flame rated thermoplastic cover.
●	Two wing makes move easy twist on termination of wires.
●	Strip wires before application.
●	Rated at 600 volt max. for building wiring.
●	Temp. 105℃ (221℉)
●	Spring design provided more secure connection.

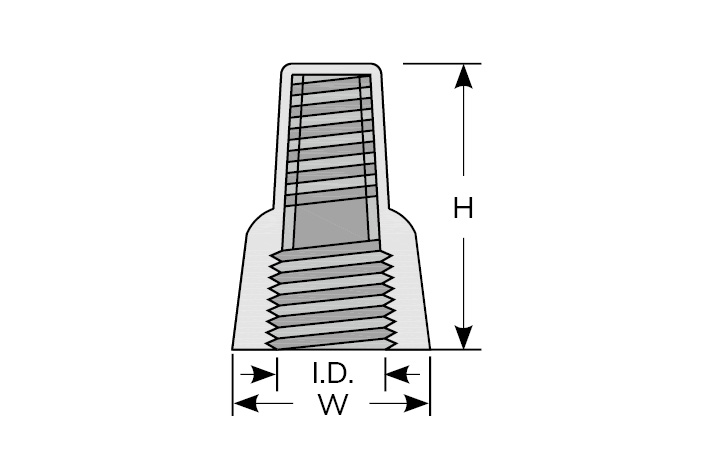

Part No. I.D. W H Wire Combination Color Packing
JIS AWG
SW-Y11H 9.8 18.2 25.8 Max. 2 #3.5 w/1 #2.0
Min. 3 #0.75 Max. 2 #12 w/1 #14
Min. 3 #18 Yellow 100 pcs / Bag
SW-Y12PH 11.2 18.3 29.0 Max. 4 #3.5
Min. 3 #0.5 Sol Max. 4 #12
Min. 3 #22 Sol Brown
SW-Y12H 13.0 23.0 31.8 Max. 5 #3.5 Sol
Min. 3 #1.25 Max. 5 #12 Sol
Min. 3 #16 Red
SW-Y13H 14.9 25.5 33.3 Max. 3 #5.5
Min. 3 #2.0 w/1 #0.75 Max. 3 #10
Min. 3 #14 w/1 #18 Grey
SW-Y14H 17.8 31.8 40.0 Max. 3 #8 w/1 #3.5
Min. 2 #5.5 w/1 #3.5 Max. 3 #8 w/1 #12
Min. 2 #10 w/1 #12 Blue

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -


Part No.	I.D.	W	H	Wire Combination		Color	Packing
Part No.	I.D.	W	H	JIS	AWG	Color	Packing
SW-Y11H	9.8	18.2	25.8	Max. 2 #3.5 w/1 #2.0 Min. 3 #0.75	Max. 2 #12 w/1 #14 Min. 3 #18	Yellow	100 pcs / Bag
SW-Y12PH	11.2	18.3	29.0	Max. 4 #3.5 Min. 3 #0.5 Sol	Max. 4 #12 Min. 3 #22 Sol	Brown
SW-Y12H	13.0	23.0	31.8	Max. 5 #3.5 Sol Min. 3 #1.25	Max. 5 #12 Sol Min. 3 #16	Red
SW-Y13H	14.9	25.5	33.3	Max. 3 #5.5 Min. 3 #2.0 w/1 #0.75	Max. 3 #10 Min. 3 #14 w/1 #18	Grey
SW-Y14H	17.8	31.8	40.0	Max. 3 #8 w/1 #3.5 Min. 2 #5.5 w/1 #3.5	Max. 3 #8 w/1 #12 Min. 2 #10 w/1 #12	Blue
