| ● | Terminal material: Copper |
| ● | Insulation material: PVC |
|
 |

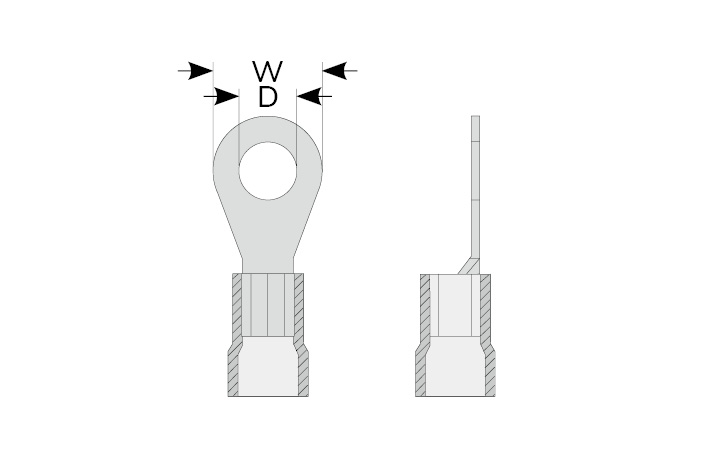

| Part No. | Stud Size | Width | Wire Size |
| D | W | AWG | DIN mm2 |
| RF1.25-3S | 3.2 | 5.50 | 22 ~ 16 | 0.5 ~ 1.0 |
| RF1.25-3 | 3.7 | 5.50 |
| RF1.25-4 | 4.3 | 8.00 |
| RF1.25-4M | 4.3 | 6.60 |
| RF1.25-5 | 5.3 | 8.00 |
| RF1.25-6 | 6.4 | 11.70 |
| RF1.25-8 | 8.4 | 11.70 |
| RF1.25-10 | 10.5 | 13.70 |
| RF2-3S | 3.7 | 6.50 | 16 ~ 14 | 1.5 ~ 2.5 |
| RF2-3 | 3.7 | 6.50 |
| RF2-4 | 4.3 | 8.50 |
| RF2-4M | 4.3 | 6.60 |
| RF2-5 | 5.3 | 9.50 |
| RF2-6 | 6.4 | 12.00 |
| RF2-8 | 8.4 | 12.00 |
| RF2-10 | 10.5 | 13.70 |
| RF3.5-4 | 4.3 | 8.00 | 14 ~ 12 | 2.5 ~ 4.0 |
| RF3.5-5 | 5.3 | 8.00 |
| RF3.5-6 | 6.4 | 12.00 |
| RF3.5-8 | 8.4 | 15.00 |
| RF3.5-10 | 10.5 | 15.00 |
| RF5.5-3 | 3.7 | 9.40 | 12 ~ 10 | 4.0 ~ 6.0 |
| RF5.5-4 | 4.3 | 9.50 |
| RF5.5-5 | 5.3 | 9.50 |
| RF5.5-6 | 6.4 | 15.00 |
| RF5.5-6S | 6.4 | 12.00 |
| RF5.5-8S | 8.4 | 12.00 |
| RF5.5-8 | 8.4 | 15.00 |
| RF5.5-10 | 10.5 | 15.00 |
| RF5.5-12 | 13.0 | 19.25 |
| RF8-4 | 4.3 | 12.00 | 8 | 10 |
| RF8-5S | 5.3 | 9.00 |
| RF8-5 | 5.3 | 12.00 |
| RF8-6 | 6.4 | 12.00 |
| RF8-8 | 8.4 | 15.00 |
| RF8-10 | 10.5 | 15.00 |
