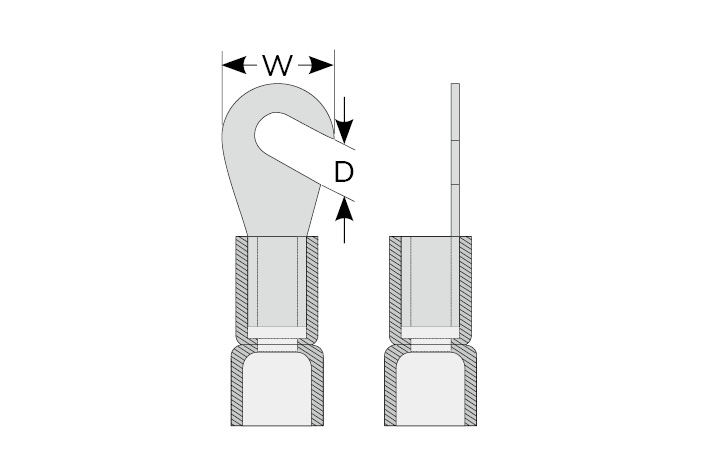

| INSULATED HOOK TERMINAL |
 |
|
 | ||||||
| Part No. | Stud Size | Width | Wire Size | |||
| D | W | AWG | DIN mm2 | |||
| HF1-4 | 4.3 | 8.0 | 22 ~ 16 | 0.5 ~ 1.0 | ||
| HF1-5 | 5.3 | 8.0 | ||||
| HF2-4 | 4.3 | 8.5 | 16 ~ 14 | 1.5 ~ 2.5 | ||
| HF2-5 | 5.3 | 9.5 | ||||
| HF5-4 | 4.3 | 9.5 | 12 ~ 10 | 4.0 ~ 6.0 | ||
| HF5-5 | 5.3 | 9.5 | ||||
