PIN INSULATED TERMINAL

BANDEX
CABLE ACCESSORIES

●	Terminal material: Copper
●	Insulation material: PVC

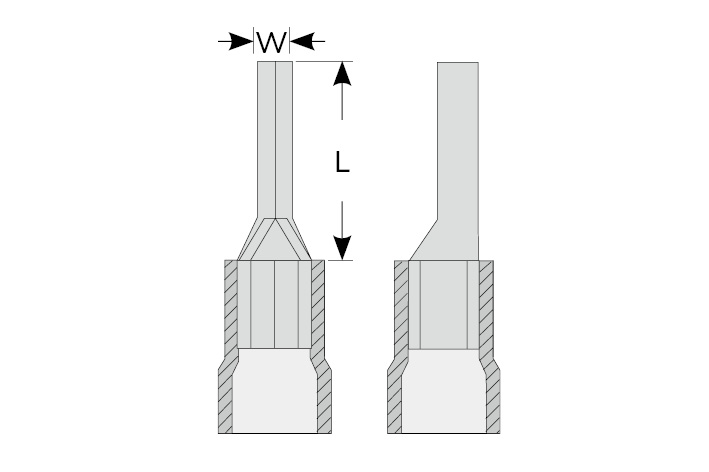

Part No. Stud Size Wire Size
Width Length
W L AWG DIN mm²
PIN1.25-AF 1.9 12.0 22 ~ 16 0.5 ~ 1.0
PIN2-AF 1.9 12.0 16 ~ 14 1.5 ~ 2.5
PIN5.5-AF 2.7 14.0 12 ~ 10 4.0 ~ 6.0

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -


Part No.	Stud Size		Wire Size
	Width	Length	Wire Size
	W	L	AWG	DIN mm²
PIN1.25-AF	1.9	12.0	22 ~ 16	0.5 ~ 1.0
PIN2-AF	1.9	12.0	16 ~ 14	1.5 ~ 2.5
PIN5.5-AF	2.7	14.0	12 ~ 10	4.0 ~ 6.0
