PIN TERMINAL (Non-Insulated)

BANDEX
CABLE ACCESSORIES

●	Terminal material: Copper

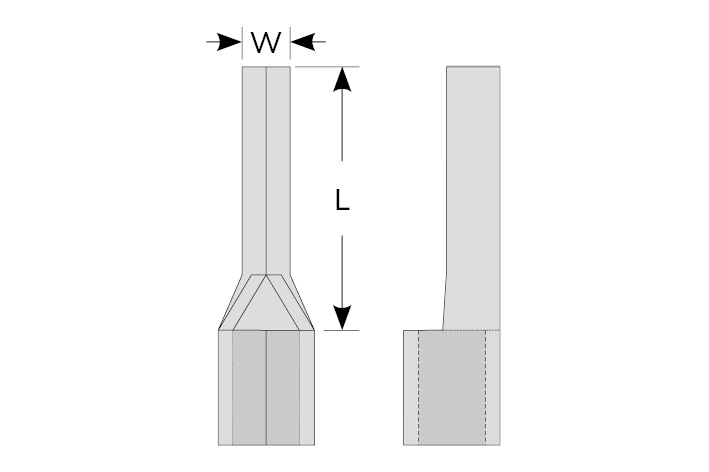

Part No. Stud Size Wire Size
Width Length
W L AWG DIN mm²
PIN-1.25 1.9 12.0 22 ~ 16 0.5 ~ 1.0
PIN-2 1.9 12.0 16 ~ 14 1.5 ~ 2.5
PIN-5.5 2.7 14.0 12 ~ 10 4.0 ~ 6.0

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -


Part No.	Stud Size		Wire Size
	Width	Length	Wire Size
	W	L	AWG	DIN mm²
PIN-1.25	1.9	12.0	22 ~ 16	0.5 ~ 1.0
PIN-2	1.9	12.0	16 ~ 14	1.5 ~ 2.5
PIN-5.5	2.7	14.0	12 ~ 10	4.0 ~ 6.0
