● Terminal material: Brass ● Insulation material: PVC

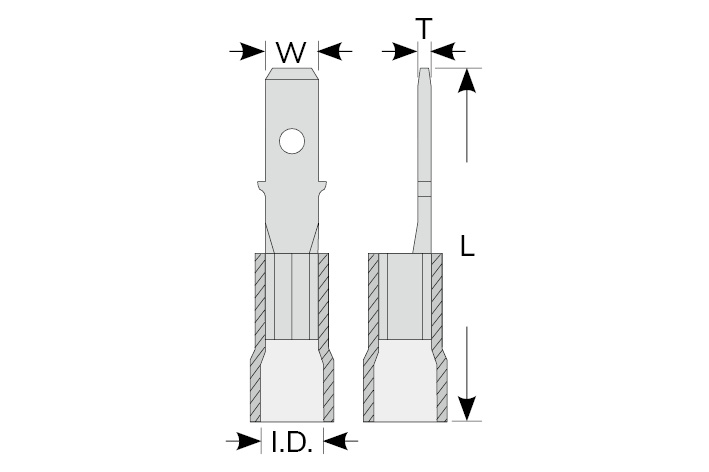

Part No.	Nema Size	Width	Length	Inside Diameter	Wire Size
	W x T	W	L	I.D.	AWG	DIN mm2
LV1.25-3B	2.80 x 0.5	2.80	20.4	3.4	22 ~ 16	0.5 ~ 1.0
LV1.25-3B8	2.80 x 0.8	2.80	20.4	3.4
LV2-3B	2.80 x 0.5	2.80	20.4	4.0	16 ~ 14	1.5 ~ 2.5
LV2-3B8	2.80 x 0.8	2.80	20.1	4.0

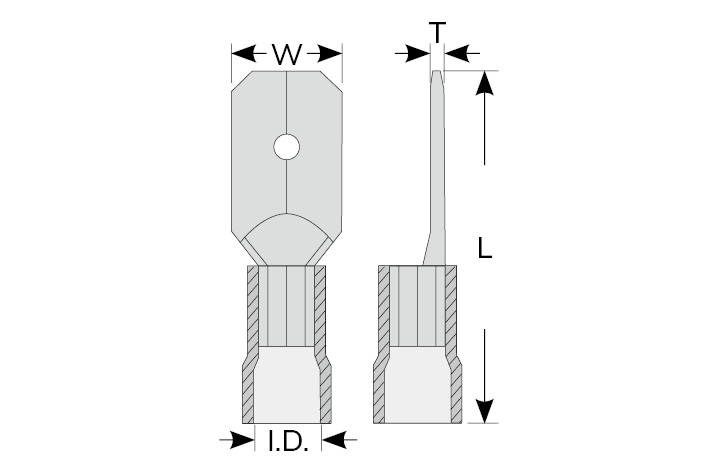

Part No.	Nema Size	Width	Length	Inside Diameter	Wire Size
	W x T	W	L	I.D.	AWG	DIN mm2
LV1.25-5B	4.80 x 0.5	4.80	18.8	3.4	22 ~ 16	0.5 ~ 1.0
LV1.25-5B8	4.80 x 0.8	4.80	19.8	3.4
LV1.25-7B	6.35 x 0.8	6.35	21.2	3.4
LV2-5B	4.80 x 0.5	4.80	18.8	4.0	16 ~ 14	1.5 ~ 2.5
LV2-5B8	4.80 x 0.8	4.80	19.8	4.0
LV2-7B	6.35 x 0.8	6.35	21.2	4.0
LV5.5-7B	6.35 x 0.8	6.35	25.0	5.4	12 ~ 10	4.0 ~ 6.0
