| ● | Terminal material: Brass |
| ● | Insulation material: PVC |
|
 |

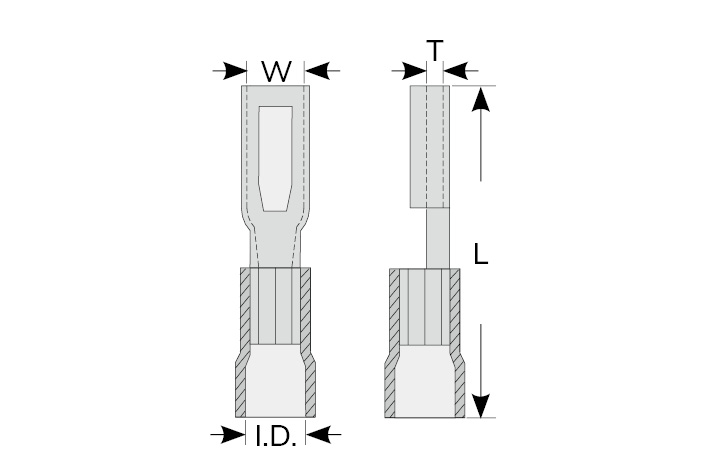

| Part No. | Nema Size | Width | Length | Inside Diameter | Wire Size |
| W x T | W | L | I.D. | AWG | DIN mm2 |
| LV1.25-3A | 2.80 x 0.5 | 3.2 | 18.3 | 3.4 | 22 ~ 16 | 0.5 ~ 1.0 |
| LV1.25-3A8 | 2.80 x 0.8 | 3.2 | 18.3 | 3.4 |
| LV2-3A | 2.80 x 0.5 | 3.2 | 18.3 | 4.0 | 16 ~ 14 | 1.5 ~ 2.5 |
| LV2-3A8 | 2.80 x 0.8 | 3.2 | 18.3 | 4.0 |
 |

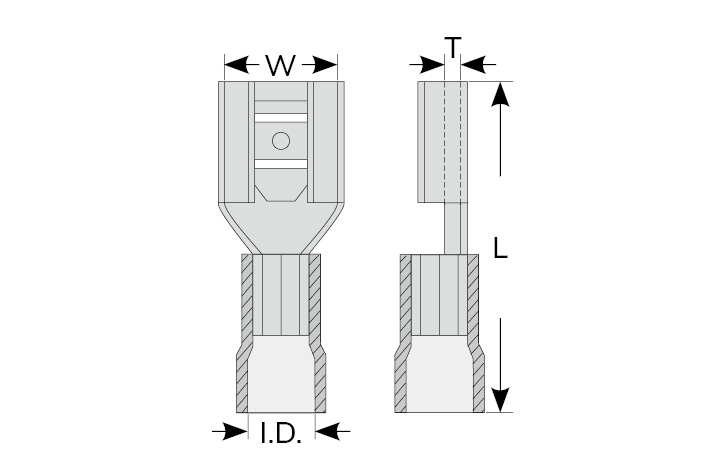

| Part No. | Nema Size | Width | Length | Inside Diameter | Wire Size |
| W x T | W | L | I.D. | AWG | DIN mm2 |
| LV1.25-5A | 4.80 x 0.5 | 5.1 | 18.6 | 3.4 | 22 ~ 16 | 0.5 ~ 1.0 |
| LV1.25-5A8 | 4.80 x 0.8 | 5.1 | 18.6 | 3.4 |
| LV1.25-7A | 6.35 x 0.8 | 7.0 | 20.6 | 3.5 |
| LV1.25-8A | 8.00 x 0.8 | 8.1 | 22.5 | 3.4 |
| LV2-5A | 4.80 x 0.5 | 5.1 | 18.6 | 4.0 | 16 ~ 14 | 1.5 ~ 2.5 |
| LV2-5A8 | 4.80 x 0.8 | 5.1 | 18.6 | 4.0 |
| LV2-7A | 6.35 x 0.8 | 7.0 | 20.6 | 4.0 |
| LV2-8A | 8.00 x 0.8 | 8.1 | 19.6 | 4.0 |
| LV2-10A | 9.80 x 0.8 | 9.8 | 25.8 | 4.0 |
| LV5.5-7A | 6.35 x 0.8 | 7.0 | 23.8 | 5.4 | 12 ~ 10 | 4.0 ~ 6.0 |
| LV5.5-10A | 9.80 x 0.8 | 9.8 | 29.0 | 5.4 |
