| FULLY INSULATED FEMALE QUICK CONNECTORS |
|
 |
| ● | Terminal material: Brass |
| ● | Insulation material: PVC |
|
 |

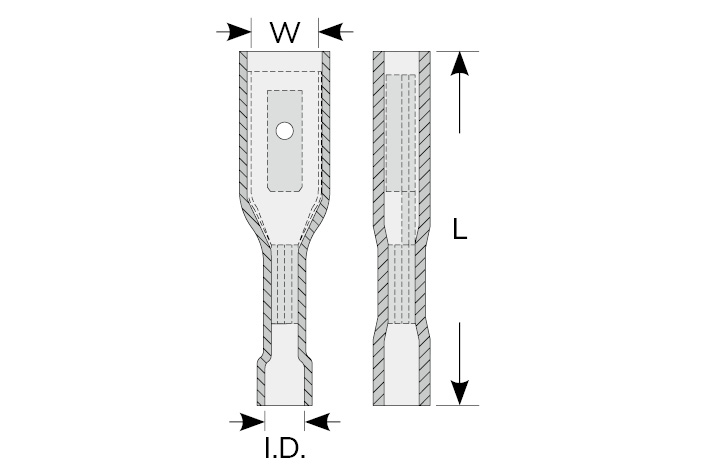

| Part No. | Nema Size | Width | Length | Inside Diameter | Wire Size |
| W x T | W | L | I.D. | AWG | DIN mm2 |
| PV1.25-3A | 2.8 x 0.5 | 3.2 | 17.2 | 3.4 | 22 ~ 16 | 0.5 ~ 1.0 |
| PV1.25-3A8 | 2.8 x 0.8 | 3.2 | 17.2 | 3.4 |
| PV1.25-5A | 4.8 x 0.5 | 5.0 | 20.0 | 3.9 |
| PV1.25-5A8 | 4.8 x 0.8 | 5.0 | 20.0 | 3.9 |
| PV1.25-7A | 6.4 x 0.8 | 6.5 | 23.0 | 3.8 |
| PV2-3A | 2.8 x 0.5 | 3.4 | 18.2 | 4.0 | 16 ~ 14 | 1.5 ~ 2.5 |
| PV2-3A8 | 2.8 x 0.8 | 3.2 | 19.2 | 4.0 |
| PV2-5A | 4.8 x 0.5 | 5.0 | 20.0 | 4.3 |
| PV2-5A8 | 4.8 x 0.8 | 5.0 | 20.0 | 4.3 |
| PV2-7A | 6.4 x 0.8 | 7.0 | 23.0 | 4.0 |
| PV5.5-7A | 6.4 x 0.8 | 6.6 | 24.0 | 6.0 | 12 ~ 10 | 4.0 ~ 6.0 |
HAYATA P.C. ENTERPRISE CO., LTD.
