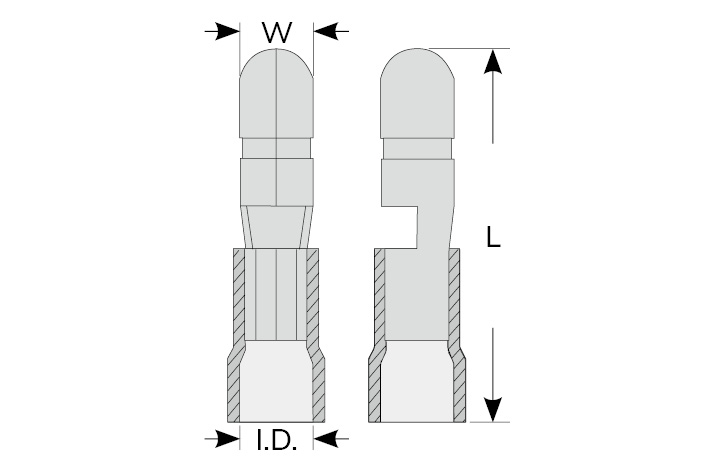

| BULLET TERMINALS - MALE |
 |
|
 | ||||||
| Part No. | Width | Length | Inside Diameter | Wire Size | ||
| W | L | I.D. | AWG | DIN mm2 | ||
| F1.25-B | 4.0 | 21.0 | 4.0 | 22 ~ 16 | 0.5 ~ 1.0 | |
| F2-BS | 4.0 | 21.0 | 4.3 | 16 ~ 14 | 1.5 ~ 2.5 | |
| F2-B | 5.0 | 21.0 | 4.3 | |||
| F5.5-B | 5.0 | 23.0 | 5.5 | 12 ~ 10 | 4.0 ~ 6.0 | |
