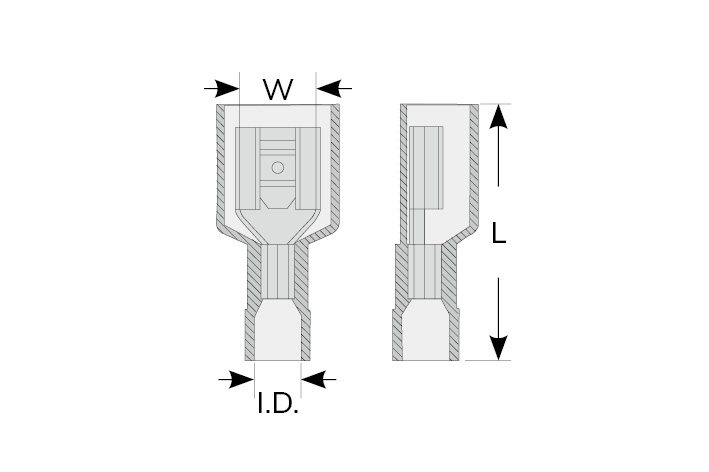

| NYLON INSULATED FEMALE LUG |
 |
|
 | ||||||
| Part No. | Width | Length | Inside Diameter | Wire Size | ||
| W | L | I.D. | AWG | DIN mm2 | ||
| PN1.25-7A | 7.2 | 22.5 | 4.0 | 22 ~ 16 | 0.5 ~ 1.0 | |
| PN2-7A | 7.2 | 22.2 | 4.6 | 16 ~ 14 | 1.5 ~ 2.5 | |
| PN5.5-7A | 7.2 | 25.5 | 6.6 | 12 ~ 10 | 4.0 ~ 6.0 | |
