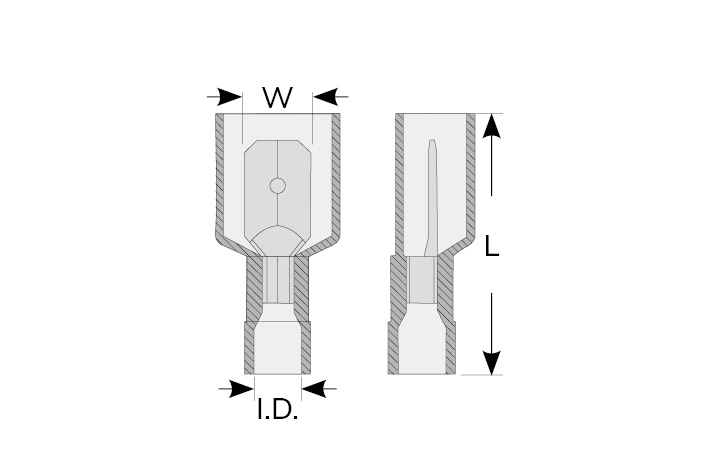

| NYLON INSULATED MALE LUG |
 |
|
 | ||||||
| Part No. | Nema Size | Width | Length | Inside Diameter | Wire Size | |
| W x T | W | L | I.D. | AWG | DIN mm2 | |
| PN1.25-7B | 6.35 x 0.8 | 6.32 | 24.0 | 4.2 | 22-16 | 0.5 ~ 1.0 |
| PN2-7B | 6.35 x 0.8 | 6.35 | 24.0 | 4.5 | 16-14 | 1.5 ~ 2.5 |
| PN5.5-7B | 6.35 x 0.8 | 6.32 | 25.5 | 6.3 | 12-10 | 4.0 ~ 6.0 |
