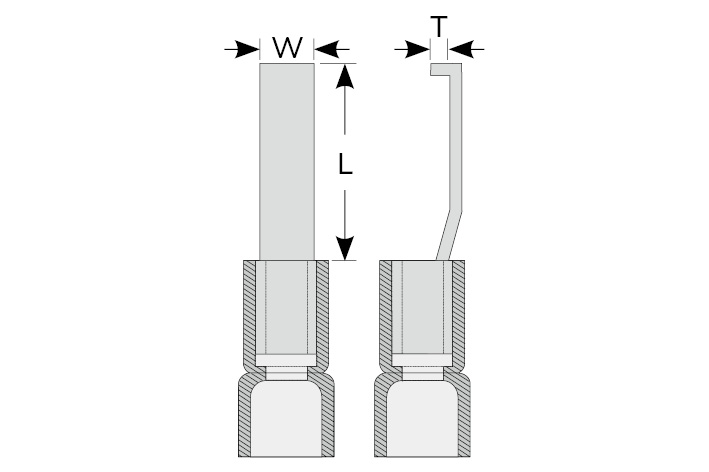

| BLADE INSULATED TERMINAL- LIP |
 |
|
 | ||||||
| Part No. | Stud Size | Dimension | Wire Size | |||
| Width | Length | T (mm) | ||||
| W | L | AWG | DIN mm2 | |||
| LB1-3F | 3.0 | 16.8 | 1.3 | 22 ~ 16 | 0.5 ~ 1.0 | |
| LB1-4F | 4.6 | 16.8 | 1.3 | |||
| LB2-3F | 3.0 | 16.8 | 1.3 | 16 ~ 14 | 1.5 ~ 2.5 | |
| LB2-4F | 4.6 | 16.8 | 1.3 | |||
| LB5-3F | 3.0 | 17.2 | 1.3 | 12 ~ 10 | 4.0 ~ 6.0 | |
| LB5-4F | 4.6 | 17.2 | 1.3 | |||
