| MALE QUICK CONNECTORS EASY ENTRY |
|
 |
| ● | Terminal material: Brass |
| ● | Insulation material: PVC |
|
 |

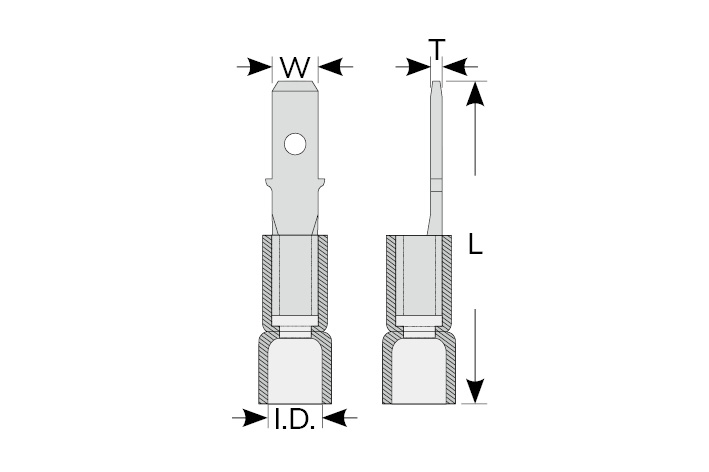

| Part No. | Nema Size | Width | Length | Inside Diameter | Wire Size |
| W x T | W | L | I.D. | AWG | DIN mm2 |
| ELV1.25-3B | 2.80 x 0.5 | 2.80 | 21.4 | 4.0 | 22 ~ 16 | 0.5 ~ 1.0 |
| ELV1.25-3B8 | 2.80 x 0.8 | 2.80 | 21.0 | 4.0 |
| ELV2-3B | 2.80 x 0.5 | 2.80 | 21.4 | 4.6 | 16 ~ 14 | 1.5 ~ 2.5 |
 |

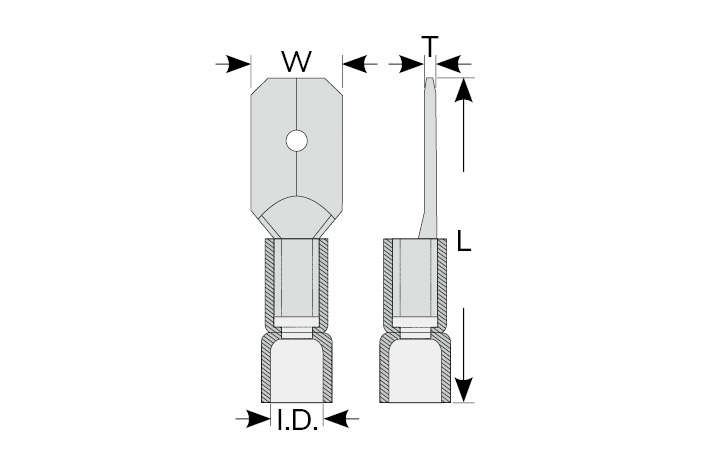

| Part No. | Nema Size | Width | Length | Inside Diameter | Wire Size |
| W x T | W | L | I.D. | AWG | DIN mm2 |
| ELV1.25-5B | 4.80 x 0.5 | 4.80 | 19.8 | 4.0 | 22 ~ 16 | 0.5 ~ 1.0 |
| ELV1.25-5B8 | 4.80 x 0.8 | 4.80 | 20.8 | 4.0 |
| ELV1.25-7B | 6.35 x 0.8 | 6.35 | 22.2 | 4.0 |
| ELV2-3B8 | 2.80 x 0.8 | 2.80 | 21.0 | 4.6 | 16 ~ 14 | 1.5 ~ 2.5 |
| ELV2-5B | 4.80 x 0.5 | 4.80 | 19.8 | 4.6 |
| ELV2-5B8 | 4.80 x 0.8 | 4.80 | 20.8 | 4.6 |
| ELV2-7B | 6.35 x 0.8 | 6.35 | 22.2 | 4.6 |
| ELV5.5-7B | 6.35 x 0.8 | 6.35 | 24.0 | 5.6 | 12 ~ 10 | 4.0 ~ 6.0 |
HAYATA P.C. ENTERPRISE CO., LTD.
