● Terminal material: Copper ● Insulation material: Nylon66

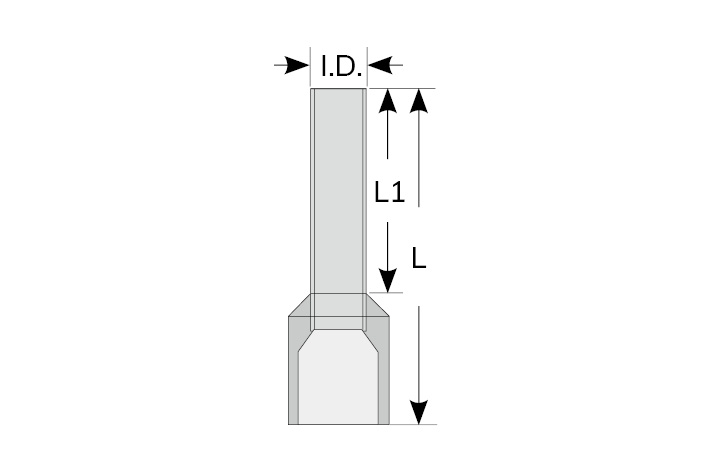

INSULATED COLOR.						Length	Copper Tube Length	Inside Diameter	WIRE SIZE
T		W		T
Part No.	Color	Part No.	Color	Part No.	Color	L	L1	I.D.	AWG	DIN mm2
ET0.25-6VT	Violet	ET0.25-6LE	Light Blue			10.0	6.0	0.75	26	0.25
ET0.25-8VT	Violet	ET0.25-8LE	Light Blue			12.0	8.0
ET0.34-6PK	Pink	ET0.34-6TE	Turkis			10.0	6.0	0.8	24	0.34
ET0.34-8PK	Pink	ET0.34-8TE	Turkis			12.0	8.0
ET0.5-6WE	White	ET0.5-6OE	Orange	ET0.5-6WE	White	12.0	6.0	1	22	0.5
ET0.5-8WE	White	ET0.5-8OE	Orange	ET0.5-8WE	White	14.0	8.0
ET0.5-10WE	White	ET0.5-10OE	Orange	ET0.5-10WE	White	16.0	10.0
ET0.75-6BE	Blue	ET0.75-6WE	White	ET0.75-6GY	Grey	12.0	6.0	1.2	20	0.75
ET0.75-8BE	Blue	ET0.75-8WE	White	ET0.75-8GY	Grey	14.0	8.0
ET0.75-10BE	Blue	ET0.75-10WE	White	ET0.75-10GY	Grey	16.0	10.0
ET0.75-12BE	Blue	ET0.75-12WE	White	ET0.75-12GY	Grey	18.0	12.0
ET1.0-6RD	Red	ET1.0-6YW	Yellow	ET1.0-6RD	Red	12.0	6.0	1.4	18	1.0
ET1.0-8RD	Red	ET1.0-8YW	Yellow	ET1.0-8RD	Red	14.0	8.0
ET1.0-10RD	Red	ET1.0-10YW	Yellow	ET1.0-10RD	Red	16.0	10.0
ET1.0-12RD	Red	ET1.0-12YW	Yellow	ET1.0-12RD	Red	18.0	12.0
ET1.5-8BK	Black	ET1.5-8RD	Red	ET1.5-8BK	Black	14.0	8.0	1.7	16	1.5
ET1.5-10BK	Black	ET1.5-10RD	Red	ET1.5-10BK	Black	16.0	10.0
ET1.5-12BK	Black	ET1.5-12RD	Red	ET1.5-12BK	Black	18.0	12.0
ET1.5-18BK	Black	ET1.5-18RD	Red	ET1.5-18BK	Black	24.0	18.0
ET2.5-8GY	Grey	ET2.5-8BE	Blue	ET2.5-8BE	Blue	14.0	8.0	2.2	14	2.5
ET2.5-10GY	Grey	ET2.5-10BE	Blue	ET2.5-10BE	Blue	16.0	10.0
ET2.5-12GY	Grey	ET2.5-12BE	Blue	ET2.5-12BE	Blue	18.0	12.0
ET2.5-18GY	Grey	ET2.5-18BE	Blue	ET2.5-18BE	Blue	24.0	18.0
ET4-10OE	Orange	ET4-10GY	Grey	ET4-10GY	Grey	17.0	10.0	2.8	12	4
ET4-12OE	Orange	ET4-12GY	Grey	ET4-12GY	Grey	20.0	12.0
ET4-18OE	Orange	ET4-18GY	Grey	ET4-18GY	Grey	26.0	18.0
ET6-12GN	Green	ET6-12BK	Black	ET6-12YW	Yellow	20.0	12.0	3.5	10	6
ET6-18GN	Green	ET6-18BK	Black	ET6-18YW	Yellow	26.0	18.0
ET10-12BN	Brown	ET10-12IY	Ivory	ET10-12RD	Red	22.0	12.0	4.5	8	10
ET10-18BN	Brown	ET10-18IY	Ivory	ET10-18RD	Red	28.0	18.0
ET16-12IY	Ivory	ET16-12GN	Green	ET16-12BE	Blue	24.0	12.0	5.8	6	16
ET16-18IY	Ivory	ET16-18GN	Green	ET16-18BE	Blue	28.0	18.0
ET25-16BK	Black	ET25-16BN	Brown	ET25-16YW	Yellow	30.0	16.0	7.3	4	25
ET25-18BK	Black	ET25-18BN	Brown	ET25-18YW	Yellow	30.0	18.0
ET25-22BK	Black	ET25-22BN	Brown	ET25-22YW	Yellow	35.0	22.0
ET35-16RD	Red	ET35-16BG	Beige	ET35-16RD	Red	30.0	16.0	8.3	2	35
ET35-18RD	Red	ET35-18BG	Beige	ET35-18RD	Red	32.0	18.0
ET35-25RD	Red	ET35-25BG	Beige	ET35-25RD	Red	39.0	25.0
ET50-20BE	Blue	ET50-20OG	Olive	ET50-20BE	Blue	36.0	20.0	10.3	1/0	50
ET50-25BE	Blue	ET50-25OG	Olive	ET50-25BE	Blue	40.0	25.0
				ET70-21YW	Yellow	37.0	21.0	13.5	2/0	70
				ET95-25RD	Red	44.0	25.0	14.7	4/0	95
				ET120-27BE	Blue	48.0	27.0	16.7		120
				ET150-32YW	Yellow	58.0	32.0	19.5	250 mcm	150
