| NON-INSULATED CORD ENDS TERMINAL |
|
 |
| ● | Terminal material: Copper |
|
 |

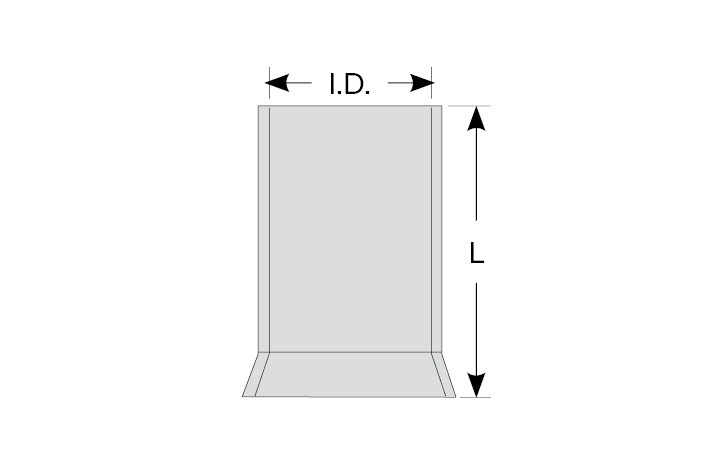

| Part No. | Length | Inside Diameter | Wire Size |
| L | I.D. | AWG | DIN mm2 |
| EN0.5-6 | 6.0 | 1.0 | 22 | 0.5 |
| EN0.5-8 | 8.0 |
| EN0.5-10 | 10.0 |
| EN0.75-6 | 6.0 | 1.2 | 20 | 0.75 |
| EN0.75-8 | 8.0 |
| EN0.75-10 | 10.0 |
| EN1.0-6 | 6.0 | 1.4 | 18 | 1.0 |
| EN1.0-8 | 8.0 |
| EN1.0-10 | 10.0 |
| EN1.0-12 | 12.0 |
| EN1.5-7 | 7.0 | 1.7 | 16 | 1.5 |
| EN1.5-8 | 8.0 |
| EN1.5-10 | 10.0 |
| EN1.5-12 | 12.0 |
| EN2.5-7 | 7.0 | 2.2 | 14 | 2.5 |
| EN2.5-8 | 8.0 |
| EN2.5-10 | 10.0 |
| EN2.5-12 | 12.0 |
| EN4-8 | 8.0 | 2.8 | 12 | 4 |
| EN4-9 | 9.0 |
| EN4-10 | 10.0 |
| EN4-12 | 12.0 |
| EN4-15 | 15.0 |
| EN4-18 | 18.0 |
| EN6-10 | 10.0 | 3.5 | 10 | 6 |
| EN6-12 | 12.0 |
| EN6-15 | 15.0 |
| EN6-18 | 18.0 |
| EN10-12 | 12.0 | 4.5 | 8 | 10 |
| EN10-15 | 15.0 |
| EN10-18 | 18.0 |
| EN16-12 | 12.0 | 5.8 | 6 | 16 |
| EN16-15 | 15.0 |
| EN16-18 | 18.0 |
| EN25-15 | 15.0 | 7.3 | 4 | 25 |
| EN25-16 | 16.0 |
| EN25-18 | 18.0 |
| EN25-22 | 22.0 |
| EN35-16 | 16.0 | 8.3 | 2 | 35 |
| EN35-18 | 18.0 |
| EN35-20 | 20.0 |
| EN35-25 | 25.0 |
| EN50-18 | 18.0 | 10.3 | 1/0 | 50 |
| EN50-20 | 20.0 |
| EN50-25 | 25.0 |
| EN70-22 | 22.0 | 13.5 | 1/0 | 70 |
| EN70-25 | 25.0 |
| EN95-25 | 25.0 | 14.7 | 4/0 | 95 |
| EN95-32 | 32.0 |
| EN120-30 | 30.0 | 16.7 | | 120 |
| EN120-32 | 32.0 |
| EN120-34 | 34.0 |
| EN150-32 | 32.0 | 19.5 | 250 mcm | 150 |
| EN150-38 | 38.0 |
