● Terminal material: Copper

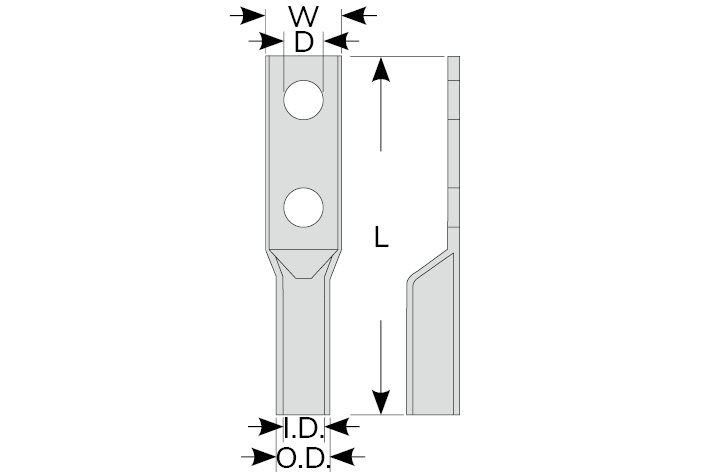

Part No.	Stud Size	Width	Length	Inside Diameter	Outside Diameter	Wire Size
	D	W	L	I.D.	O.D.	AWG	DIN mm2
CL14-8-2D	8.4	12.0	120.0	5.8	8.8	6	10.6 ~ 16.7
CL22-8-2D	8.4	15.0	120.0	8.0	10.6	4	16.8 ~ 26.6
CL22-10-2D	10.5	15.0	120.0	8.0	10.6
CL38-10-2D	10.5	18.3	120.0	9.8	12.4	2	26.7 ~ 42.4
CL38-12-2D	13.0	18.3	120.0	9.8	12.4
CL60-10-2D	10.5	20.5	130.0	11.0	14.0	1/0	42.5 ~ 60.5
CL60-12-2D	13.0	21.4	130.0	11.0	14.1
CL70-12-2D	13.0	21.4	130.0	11.0	14.1
CL80-12-2D	13.0	23.2	130.0	13.0	16.0	3/0	76.3 ~ 97.0
CL100-12-2D	13.0	26.0	132.0	14.0	18.0	4/0	96.3 ~ 117.0
CL125-12-2D	13.0	28.0	135.0	16.0	20.0	250 mcm	127.0
CL150-12-2D	13.0	31.0	150.0	17.0	22.0	300 mcm	152.0
CL180-12-2D	13.0	33.0	150.0	19.2	23.0	350 mcm	177.0
CL200-12-2D	13.0	36.0	150.0	20.0	26.0	400 mcm	203.0
CL250-12-2D	13.0	40.0	150.0	22.0	28.0	500 mcm	253.0
CL325-12-2D	13.0	45.0	180.0	25.0	32.0	650 mcm	325.0
CL400-12-2D	13.0	48.0	180.0	30.0	37.0	800 mcm	500.0
CL500-12-2D	13.0	56.0	180.0	31.0	40.0	1000 mcm	500.0
