SELF ADHESIVE WIRE MARKER

● Material : Nylon taffeta with adhesive. ● Stick to wires for permanent identification. ● Used extensively for cable diameters after or before terminal is attached. ● For your orders, please specify solid or consecutive and what letter (s), number (s) you need. ※ SMB-5 content please reference SMB-2、SMB-3、SMB-4 ※ SM-1 has 4 pieces/sheet. SMB-1, SMB-2, SMB-3, SMB-4 and SMB-5 have 7 pieces/sheet.

Part No.	L	W	Std. Markings	Packing
	mm	mm

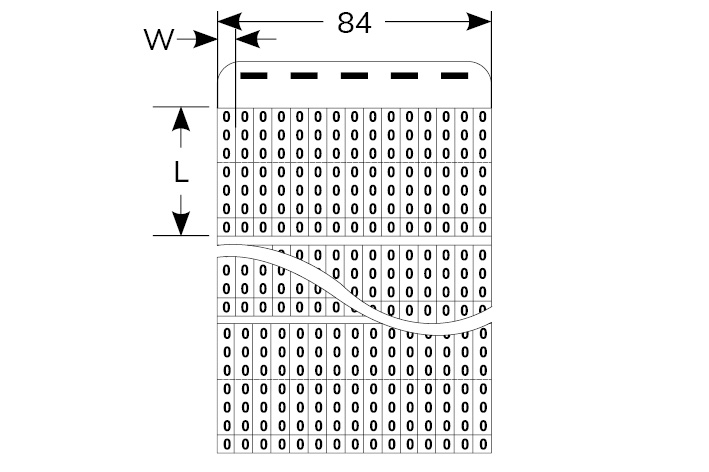

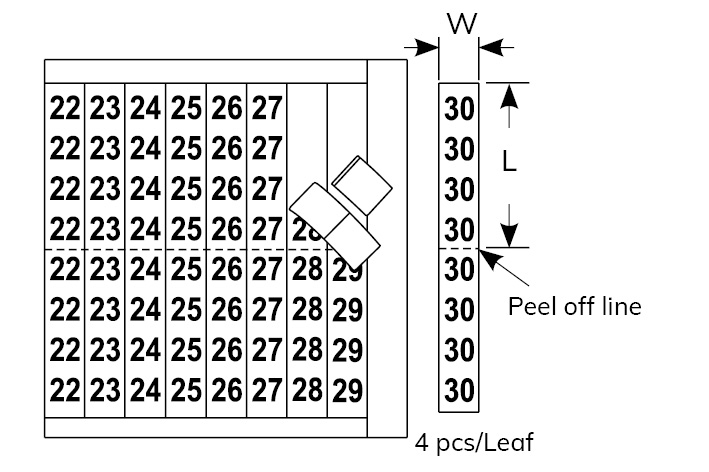

SM-1	25.0	6.0	Solid: 0, 1, 2, 3,...100 A, B, C,... Z, ＋, －, Consecutive Number: 0~9	80 leaf / Sheet 50 Sheet / Box
	25.0	7.0	Consecutive Number: 1~34, 35~67 68~100, A~Z	68 leaf / Sheet 50 Sheet / Box
SM-2	25.0	6.5	Blank	80 leaf / Sheet 50 Sheet / Box
SM-3	10.0	40.0		30 leaf / Sheet 50 Sheet / Box

Part No.	L	W	Std. Markings	Packing
	mm	mm
SMB-1	33.0	5.6	0~9 @ 1 Page	45 leaf / Sheet 10 Sheet / Box

Part No.	L	W	Std. Markings	Packing
	mm	mm

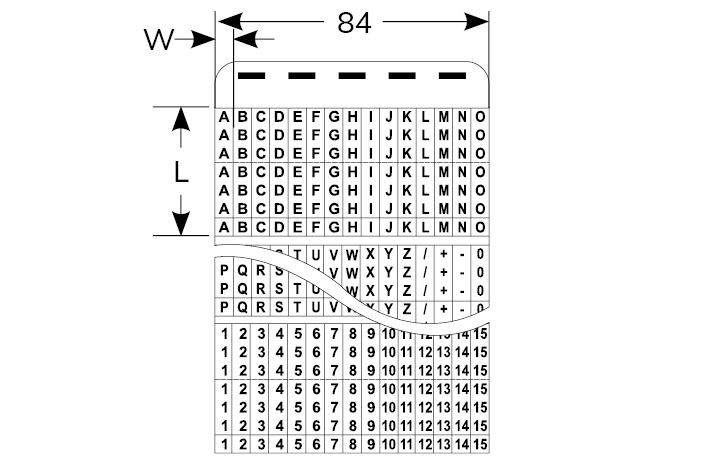

SMB-2	33.0	5.6	0~15, A~Z,＋,－,∕	45 leaf / Sheet 10 Sheet / Box
SMB-3	33.0	5.6	1~45	45 leaf / Sheet 10 Sheet / Box
SMB-4	33.0	5.6	46~90	45 leaf / Sheet 10 Sheet / Box
SMB-5	33.0	5.6	(1~45)x4Page (46~90)x4Page (A~Z＋,－,∕,0~15)x2Page	45 leaf / Sheet 10 Sheet / Box
