| ● | Material: UL approved Nylon 66, 94V-2 |
| ● | Press the tie into a pre-drilled hole and bind the cord by securing the tie. |
| ※ | PRVS-130HSBK：UL approved heat stabilized Nylon 66, 94V-2 black |
|
 |

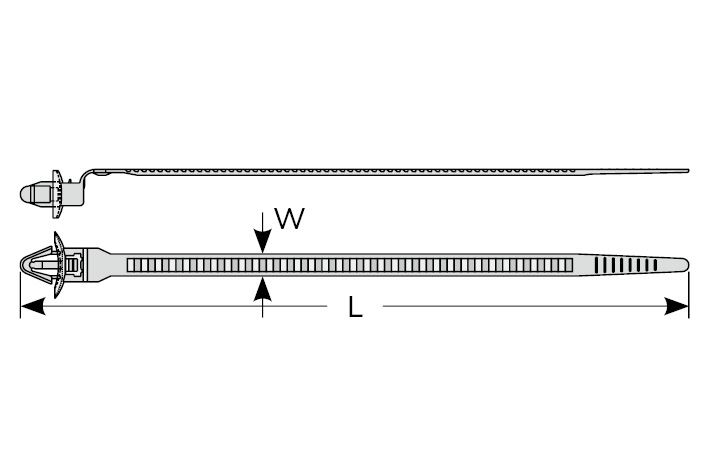

| Part No. | L | W | Max. Bundle Dia. | Mounting Hole | Chassis | Min. Loop Tensile Strength | Packing |
| mm | inch | lbs | kgs |
| PCV-155 | 168.0 | 6 1/8" | 3.8 | 40.0 | 4.8 | 3.0 | 40 | 18 | 100 pcs / Bag |
| PCV-200 | 203.0 | 8" | 4.8 | 50.0 | 6.4 | 3.0 | 50 | 22 |
| PCVS-130 | 132.0 | 5 1/8" | 4.8 | 30.0 | 4.8 | 3.0 | 50 | 22 |
| PCVS-200 | 203.0 | 8" | 4.8 | 50.0 | 4.8 | 3.0 | 50 | 22 |
 |
| Part No. | L | W | Max. Bundle Dia. | Mounting Hole | Chassis | Min. Loop Tensile Strength | Packing |
| mm | inch | lbs | kgs |
| PFVS-130 | 131.0 | 5 1/8" | 3.7 | 30.0 | 4.8 | 2.4 | 40 | 18 | 100 pcs / Bag |
| PFVS-155 | 157.5 | 6 1/8" | 3.7 | 38.0 | 4.8 | 2.4 | 40 | 18 |
| PFVS-200 | 207.0 | 8" | 3.7 | 50.0 | 4.8 | 2.4 | 40 | 18 |
 |
| Part No. | L | W | Max. Bundle Dia. | Mounting Hole | Chassis | Min. Loop Tensile Strength | Packing |
| mm | inch | lbs | kgs |
| PGV-100 | 101.0 | 4 1/8" | 3.4 | 25.0 | 4.8 | 2.5 | 40 | 18 | 100 pcs / Bag |
| PGV-130 | 135.0 | 5 5/16" | 3.4 | 33.0 | 4.8 | 2.5 | 40 | 18 |
 |
| Part No. | L | W | Max. Bundle Dia. | Mounting Hole | Chassis | Min. Loop Tensile Strength | Packing |
| mm | inch | lbs | kgs |
| PSV-130 | 132.0 | 5 1/8" | 4.8 | 30.0 | 6.4 | 3.3 | 50 | 22 | 100 pcs / Bag |
| PSV-200 | 202.0 | 8" | 4.8 | 50.0 | 6.4 | 3.3 | 50 | 22 |
 |
| Part No. | L | W | Max. Bundle Dia. | Mounting Hole | Chassis | Min. Loop Tensile Strength | Packing |
| mm | inch | lbs | kgs |
| PWV-130 | 132.0 | 5 1/8" | 4.8 | 30.0 | 6.2 | 2.8 | 50 | 22 | 100 pcs / Bag |
| PWV-170 | 170.0 | 6 11/16" | 4.8 | 40.0 | 6.0 | 3.0 | 50 | 22 |
| PWV-200 | 201.0 | 8" | 4.8 | 50.0 | 6.2 | 2.8 | 50 | 22 |
| PWVS-100 | 112.0 | 4 3/8" | 2.5 | 25.0 | 4.6 | 2.6 | 18 | 8 |
| PWVS-130 | 133.0 | 5 1/8" | 4.8 | 30.0 | 4.6 | 4.5 | 50 | 22 |
| PWVS-155 | 157.0 | 6 1/8" | 3.5 | 36.0 | 4.6 | 2.6 | 40 | 18 |
 |
| Part No. | L | W | Max. Bundle Dia. | Mounting Hole | Chassis | Min. Loop Tensile Strength | Packing |
| mm | inch | lbs | kgs |
| PRVS-130HSBK | 134.5 | 5 1/4" | 4.8 | 30.0 | 8.2 | 5.0 | 50 | 22 | 100 pcs / Bag |
 |
| Part No. | L | W | Max. Bundle Dia. | Mounting Hole | Chassis | Min. Loop Tensile Strength | Packing |
| mm | inch | lbs | kgs |
| PEV-170BK | 170.0 | 6 11/16" | 5.3 | 40.0 | 6.8 | 12.0 | 26 | 12 | 100 pcs / Bag |
 |
| Part No. | L | W | Max. Bundle Dia. | Mounting Hole | Chassis | Min. Loop Tensile Strength | Packing |
| mm | inch | lbs | kgs |
| PUV-170 | 168.6 | 6 5/8" | 5.4 | 38.0 | 6.8 | 1.6 | 50 | 22 | 100 pcs / Bag |
