| ● | Material: UL approved NYLON 66, 94V-2 |
| ● | CABLE CLAMPS are designed to hole cable cables, tubes and components in domestic appliance, electronics and electric apparatus generally. |
| ● | To apply, just clamp down on loosen cable and screw it to chassis. |
| ● | Black color available. |
|
 |

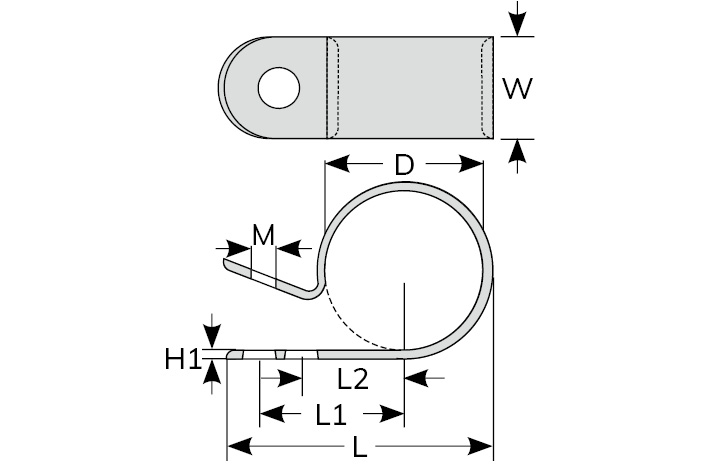

| Part No. | Bolt Hole | Size | Packing |
| A | B | C | D | E | F |
| mm | inch |
| CC03 | 4.8 | 8.0 | 9.6 | 3.1 | 1/8" | 16.9 | 1.1 | 100 pcs / Bag |
| CC05 | 4.8 | 9.2 | 9.6 | 5.0 | 3/16" | 18.5 | 1.1 |
| CC06 | 4.6 | 10.4 | 10.1 | 6.4 | 1/4" | 20.0 | 1.1 |
| CC07 | 4.8 | 11.2 | 10.0 | 7.2 | 9/32" | 22.6 | 1.2 |
| CC08 | 5.0 | 11.2 | 10.0 | 7.9 | 5/16" | 22.6 | 1.2 |
| CC10 | 5.0 | 12.5 | 12.3 | 9.5 | 3/8" | 26.6 | 1.4 |
| CC13 | 5.0 | 14.8 | 12.2 | 12.7 | 1/2" | 30.3 | 1.4 |
| CC16 | 5.0 | 15.8 | 14.4 | 15.8 | 5/8" | 32.6 | 1.4 |
| CC19 | 4.8 | 18.0 | 11.8 | 19.4 | 3/4" | 37.3 | 1.4 |
| CC25 | 5.0 | 21.0 | 12.0 | 25.4 | 1" | 43.4 | 1.4 |
| CC28 | 4.8 | 26.0 | 12.6 | 27.5 | 1 1/16" | 51.5 | 1.7 |
| CC32 | 4.7 | 26.0 | 12.0 | 31.8 | 1 1/4" | 52.3 | 1.6 |
| CC38 | 4.8 | 27.8 | 12.5 | 36.7 | 1 1/2" | 58.3 | 1.5 |
